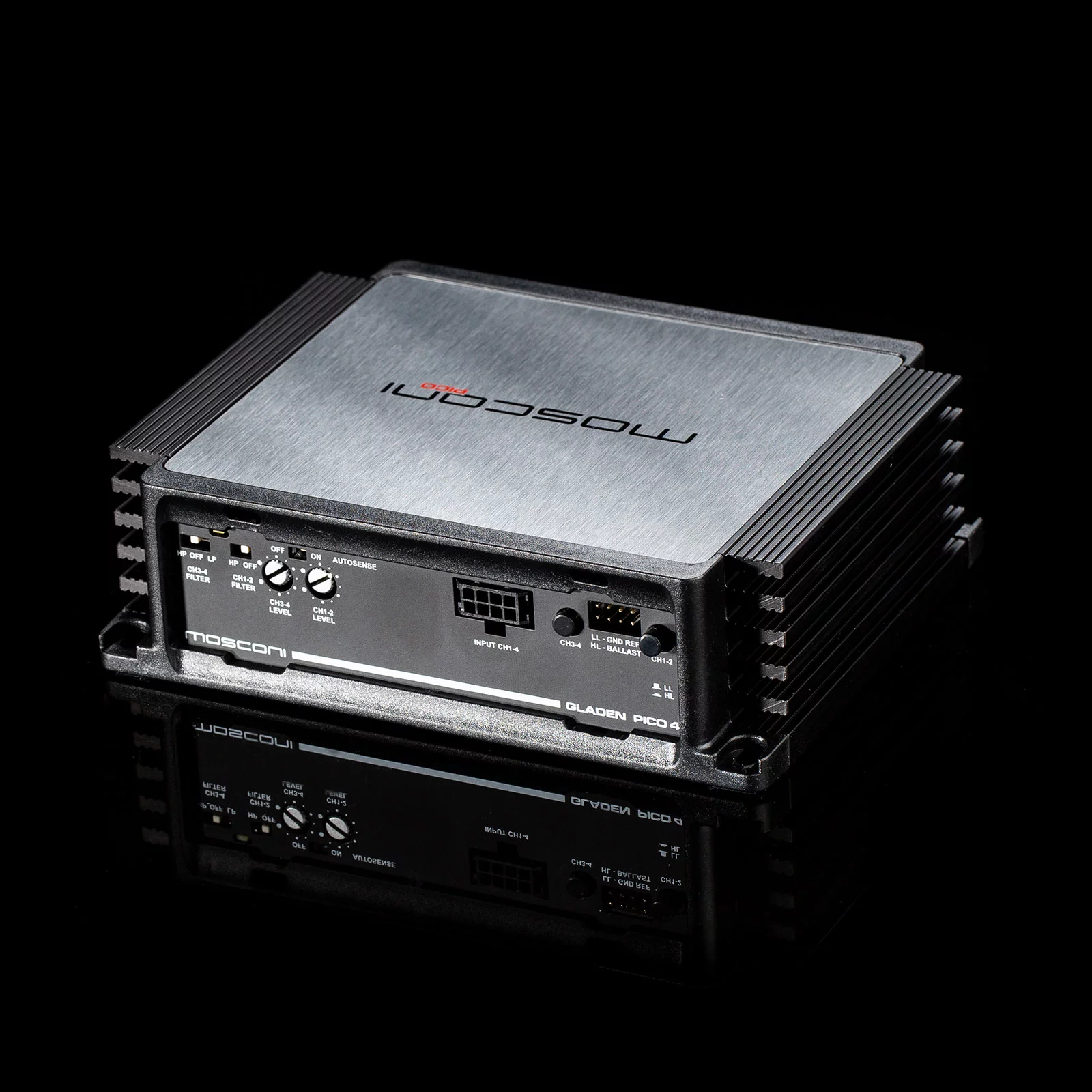

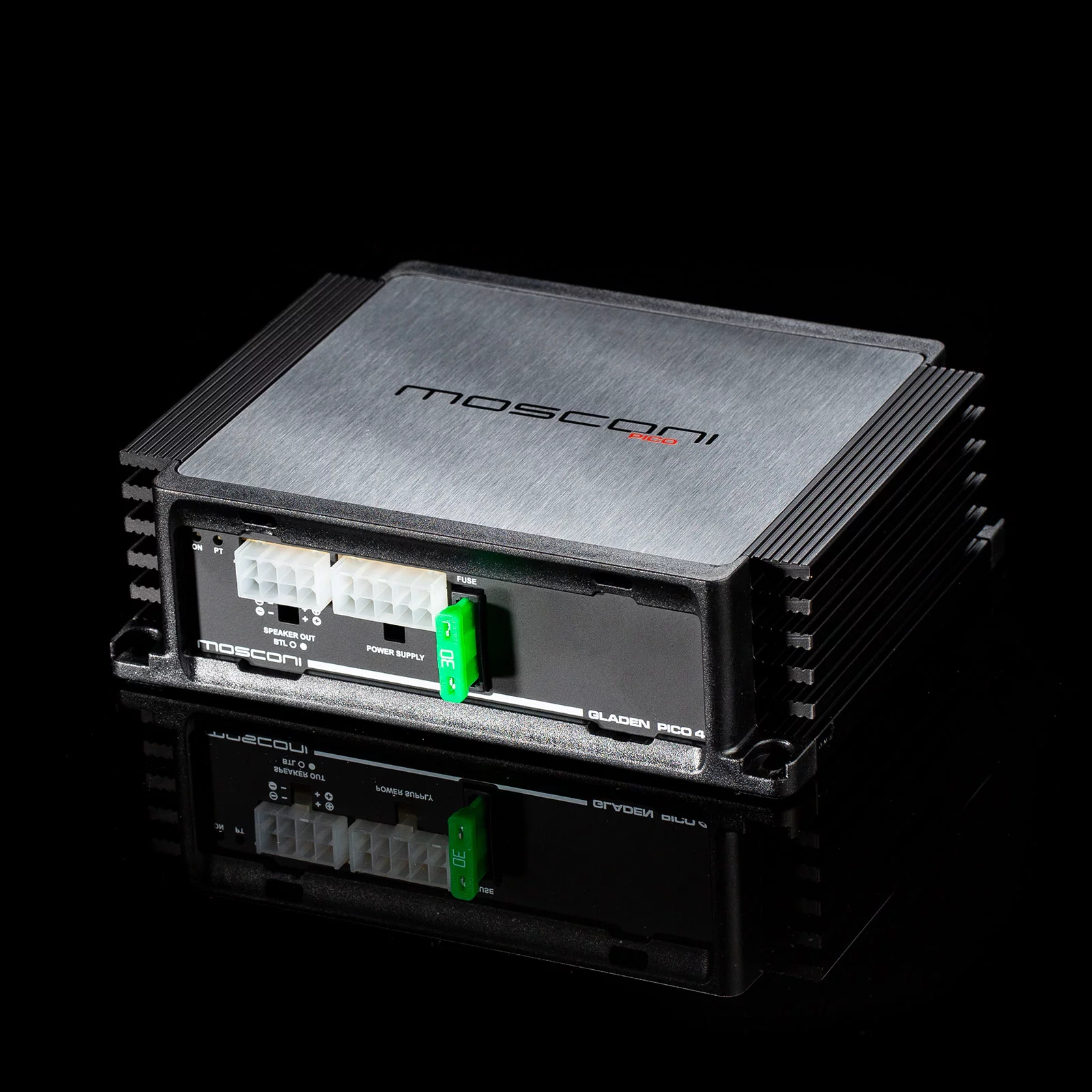

MOSCONI PICO 4 / PICO 4 SA

Four channel full range PWM amplifier with separate synchronized modulation. Up to 480 Wrms total power, bridgeable and 2-Ohm stable. Thus, the Mosconi PICO 4 masters any constellation: whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with dual voice coil. Ideal supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

Active crossover
Molex connectors
Compact design
High current efficiency
Crossover for semi active operation (Pico 4 SA)
Available as 24 Volt version (Pico 4 only)

TECHNICAL DATA MOSCONI PICO 4 / PICO 4 SA
OUTPUT POWER:

Output power RMS @ 4Ω:  4 x 90 Watts

Output power RMS @ 2Ω:  4 x 120 Watts

Output power RMS @ 4Ω:  2 x 85 Watts + 1 x 245 Watts (bridged)

Output power RMS @ 4Ω:  2 x 240 Watts (bridged)

SPECIFICATIONS:

Input voltage: 0.3 – 20 V

Overall efficiency: > 75 %

Auto-On (only High Level): Off – BTL

Channel 1+2 Filter (HP) : Off – 80 Hz (12 dB/Oct)

Channel 3+4 Filter (HP/LP): Off – 80 Hz (12 dB/Oct)

Channel 1+2 Filter (HP): Off – 280 Hz (12 dB/Oct) – Pico 4 SA

Channel 3+4 Filter (HP/LP): Off – 220 Hz (12 dB/Oct) – Pico 4 SA

Dimensions: 150 x 115 x 46 mm

Weight: 1050 Gramm
