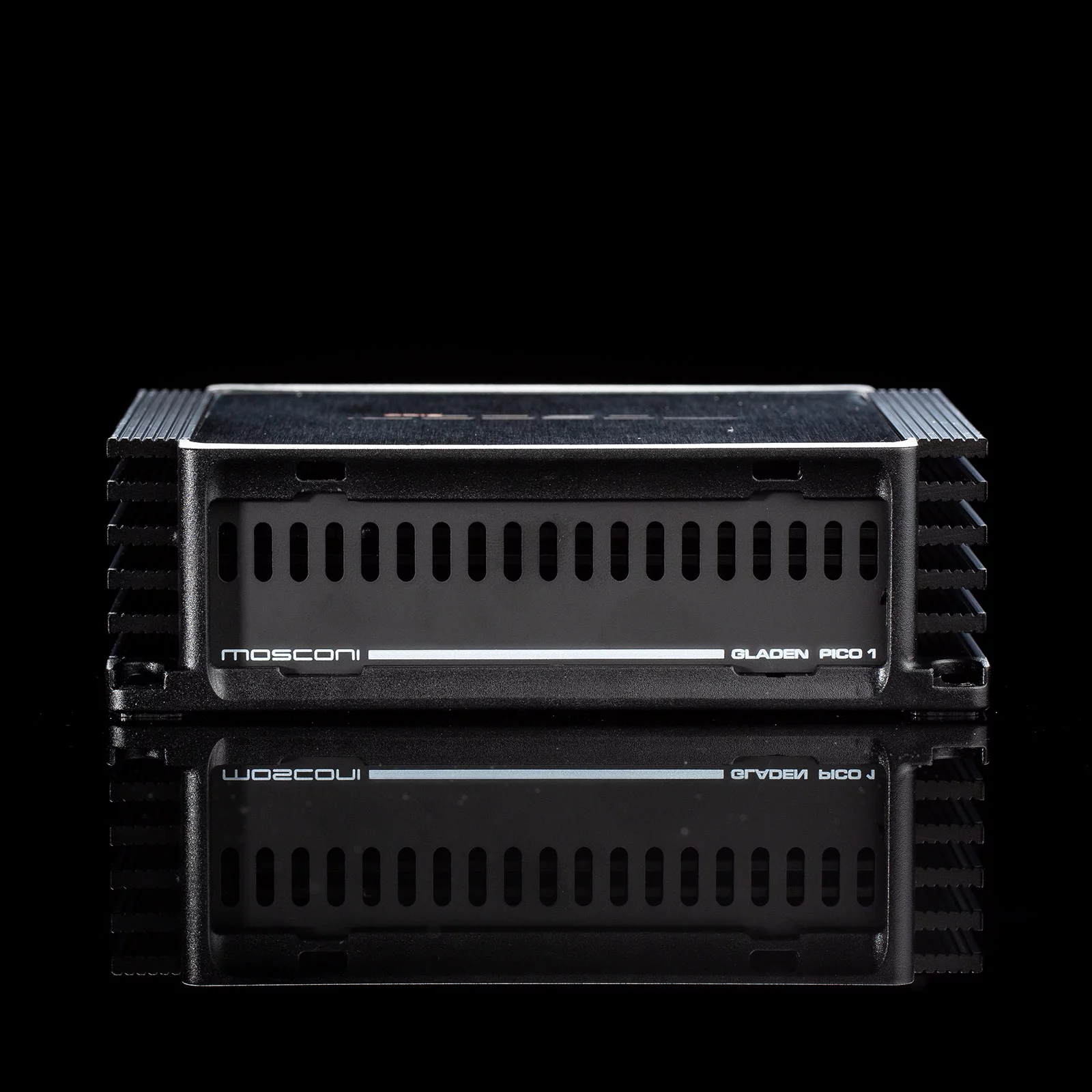

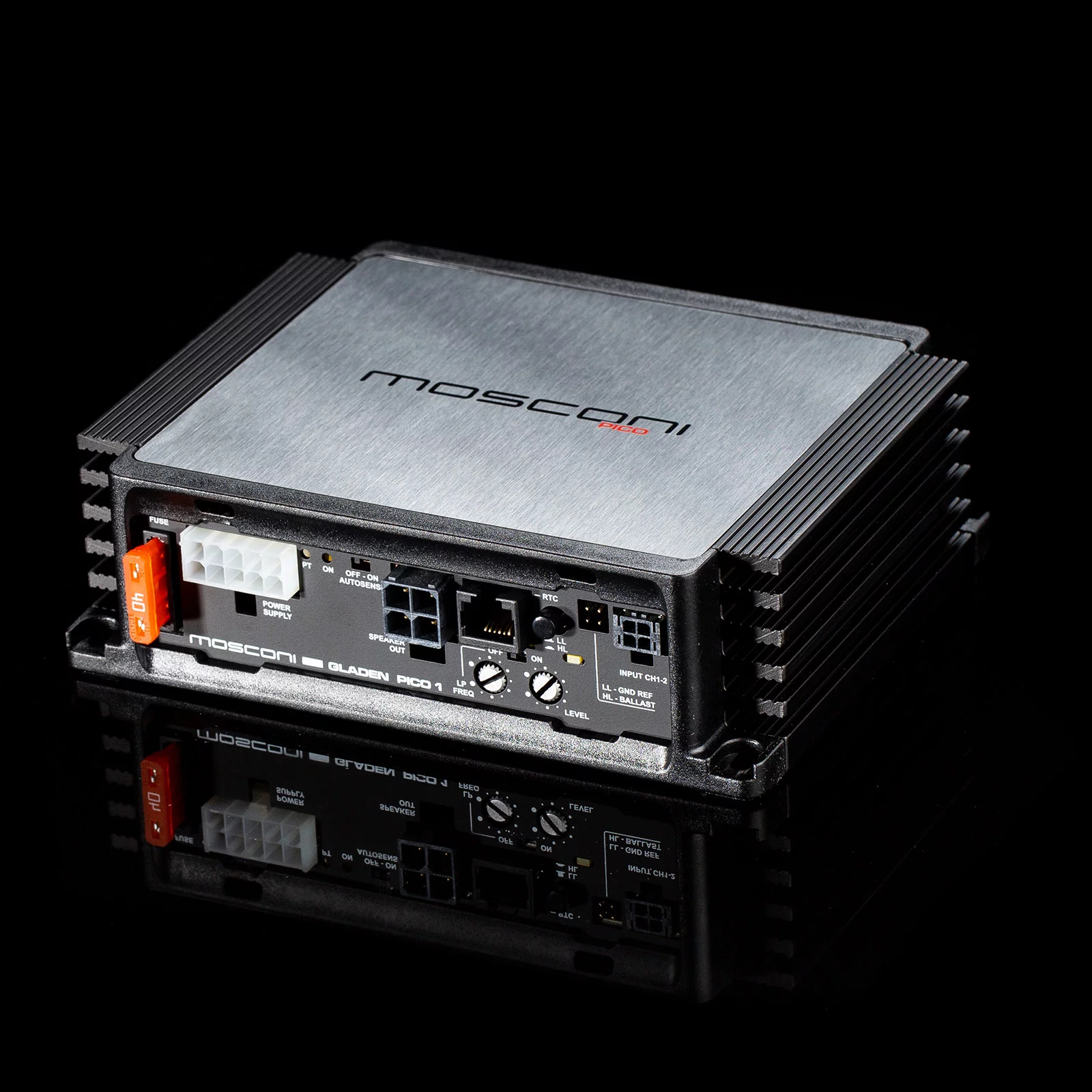

MOSCONI PICO 1

Full-range PWM amplifier with separate, synchronized modulation and fast high-current mosfets. The Mosconi PICO 1 delivers a full 750 Wrms into two ohms. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

Automatic switch-on (only high level, SE or BTL mode)
Remote volume control (optional)
Molex connectors

The Pico 1 is also available as an 18 Volt version. This is specially adapted to the electrical system of the latest Tesla models.

TECHNICAL DATA MOSCONI PICO 1
OUTPUT POWER:

Output power RMS @ 4Ω: 1 x 500 Watts

Output power RMS @ 2Ω: 1 x 750 Watts

SPECIFICATIONS:

Input voltage: 0,3 V – 20 V

Overall efficiency: > 75 %

Auto-On (only High Level): Off – BTL

Low-pass filter: Off / 45 – 310 Hz (12 dB/Oct)

Subsonic filter (always on) : 13 Hz (12 dB/Oct)

Dimensions: 150 x 115 x 46 mm

Weight: 1050 Gramm
