Eton HEX28 tweeter with 28 mm dome

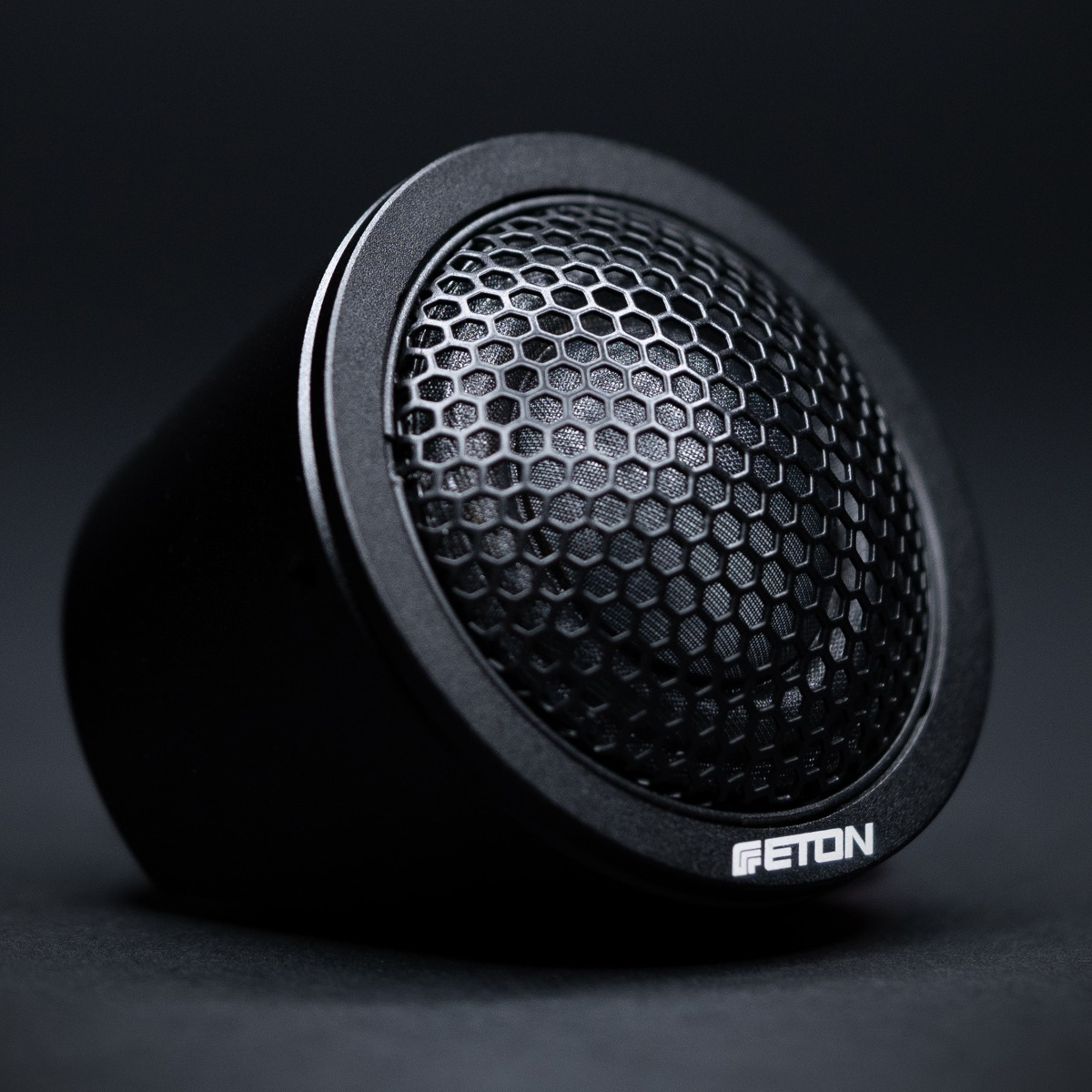

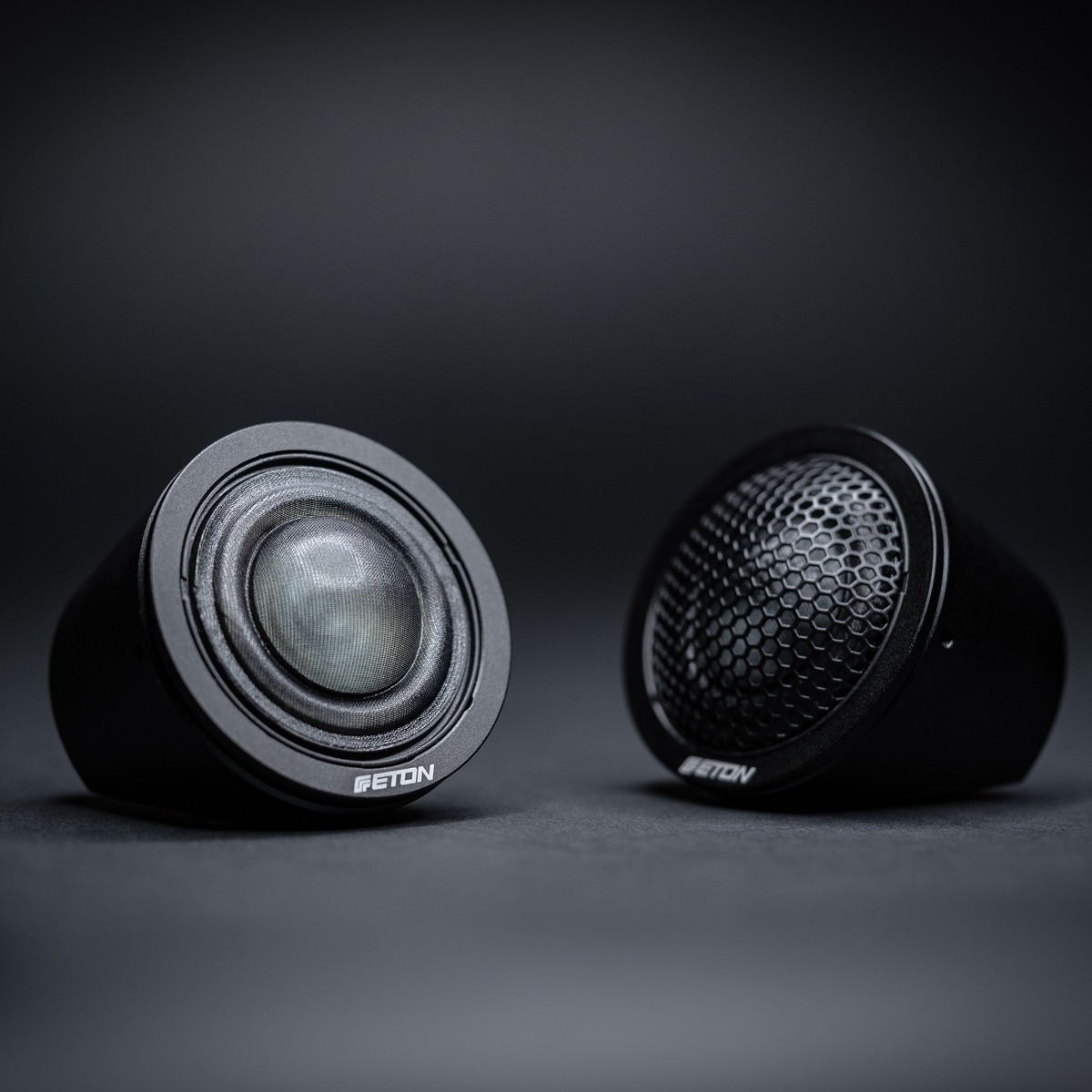

ETON HEX 28 tweeter with 28 mm fabric dome

Our masterpiece in high frequency reproduction: high-resolution, refined, and contoured. Thanks to a newly developed dome geometry and improved omnidirectional characteristics, this is one of our best tweeters! The extremely powerful neodymium drive with damped coupling volume and corrugated pole plate construction with multi-stage ventilation ensures true SQ listening pleasure! Furthermore, the ribbed and stiffened volume pot with RCFS technology is resonance-optimized, giving the system its mature sound character for the finest details, rich and precise reproduction! This is true high-end Made in Germany.

ETON HEX 28 – 28 mm / 1 1/8" high-end tweeter, audiophile tweeter for cars and mobile homes, for installation in the A-pillar, dashboard, side panel, 1 pair

The new ETON HEX 28 sound quality tweeter in the premium class: a small marvel of electro-acoustics for true sound gourmets – top sound made in Germany. The 28 mm (1 1/8") fabric dome tweeter is suitable for installation in the A-pillar, dashboard and side panel of cars and mobile homes. The HEX 28 plays silky smooth and enchants with unique fine detail.

The high-end tweeter impresses with its special dome geometry, which optimizes impulse response. In addition, there is a newly developed surface finish in which the fabric dome is coated twice by hand. This guarantees the acoustic neutrality of the HEX 28 and prevents resonances or distortion. Voices and the finest details are reproduced brilliantly and richly, precisely and fully, with explosive dynamics even at the smallest signals.

The extremely powerful neodymium magnet is ventilated in several stages and also features a damped coupling volume and a corrugated pole plate construction that prevents annoying reflections behind the fabric dome. Made from a dampening plastic blend, the volume pot is particularly rigid, low-resonance, and sound-neutral thanks to its ribbed shape.

The maximum permeability, very high-quality hexagonal metal grille is held in a circumferential groove by the magnetic force of the neodymium drive and can be removed if necessary. The tweeter is enclosed in a CNC-machined and anodized aluminum mounting ring, which can also be removed. Surface-mounted enclosure balls made of CNC-milled aluminum are included.

The HEX 28 set is ideal for combination with the HEX 165 woofers and HEX 80 midrange drivers (coming soon).

MAIN FEATURES ETON HEX 28
– 28 mm (1 1/8") High End Tweeter
– Double hand-coated fabric dome with special dome geometry
– Extremely powerful, multi-stage ventilated neodymium magnet with damped coupling volume, corrugated pole plate construction
– Ribbed, rigid and low-resonance volume dome
– High-quality, maximum-permeability hexagonal metal grille
– CNC-machined, anodized aluminum mounting ring
– Made in Germany

Technical specifications:

Rated power 120 W RMS (with active frequency separation via crossover),
Impedance 4 ohms,
recommended transmission range 2.4 – 22 kHz,
average sound pressure level 87 dB, outer diameter 60.5 mm,
Installation diameter 53 mm,
Installation depth 22.9 mm

Scope of delivery:

2 x tweeters,

2 x ETON logo aluminum adhesive sign,

2 x aluminum surface-mounted housing,

Mounting screws.

Type: Components
Voice coils: 1x 4 ohms
Perfomance: 0 – 250 watts
Channels: 2-channel
Case color: black
Manufacturer: Eton
Scope of delivery: Speakers, mounting material
Connection: Miscellaneous
Device type: Speaker
