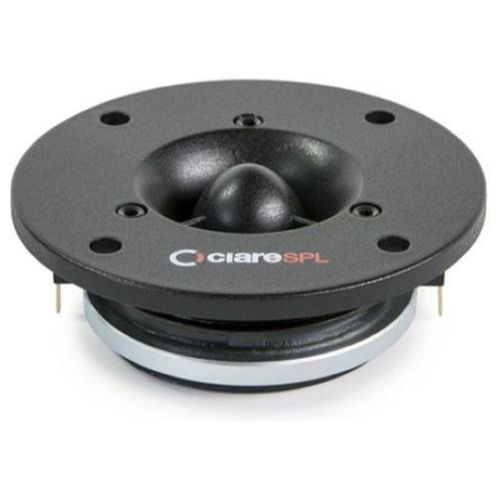

Ciare CT268ND Tweeter

Specifications

Nominal Diameter  26 mm (1 in)

Nominal Power Handling  150 W

Sensitivity  105 dB

Voice Coil Diameter  26 mm (1 in)

Diaphragm Material  Aluminum

Nominal Impedance  4 Ω

Continuous Power Handling  250 W

Frequency Range  4000 kHz – 20000 kHz

Winding Depth 3 mm (0.12 in)

Parameters

Fs  2300 Hz

Re  3.25 Ω

Design

Surround Shape  Nomex Fabric

Connection Type  Faston

Cone Shape  Planar

Cone Material  Aluminum

Mounting Info

Overall Diameter  90 mm (3.54 in)

Baffle Cutout Diameter  64 mm (2.52 in)

Flange and Gasket Thickness  5 mm (0.2 in)

Shipping Units  6 pcs

Bolt Diameter  5.5 mm (0.22 in)

Bolt Circle Diameter  116 mm (4.57 in)

Depth  30 mm (1.18 in)
