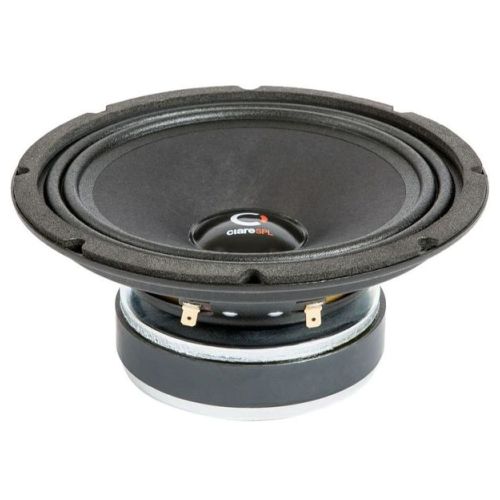

Ciare CME200 MIdrange speaker

Specifications
Nominal Diameter  200 mm (8 in)
Nominal Power Handling  130 W
Sensitivity  99.5 dB
Voice Coil Diameter  38 mm (1.5 in)
Former Material  Kapton
Magnetic Gap Depth  8 mm (0.31 in)
Nominal Impedance  4 Ω
Continuous Power Handling  260 W
Frequency Range  70 Hz – 8000 Hz
Winding Material  Aluminum
Winding Depth  11 mm (0.43 in)
Parameters  Fs 76 Hz
Qes  0.39
Qts  0.37
Sd  206 cm² (31.93 sq²)
Xmax  3.5 mm (0.14 in)
Bl  7.3 Tm
d  162 mm (6.38 in)
Re  3 Ω
Qms  7
Vas  18 dm³ (0.64 ft³)
η0 0.02 %
Mms  14.2 g
Le  0.45 mH
EBP  195 Hz
