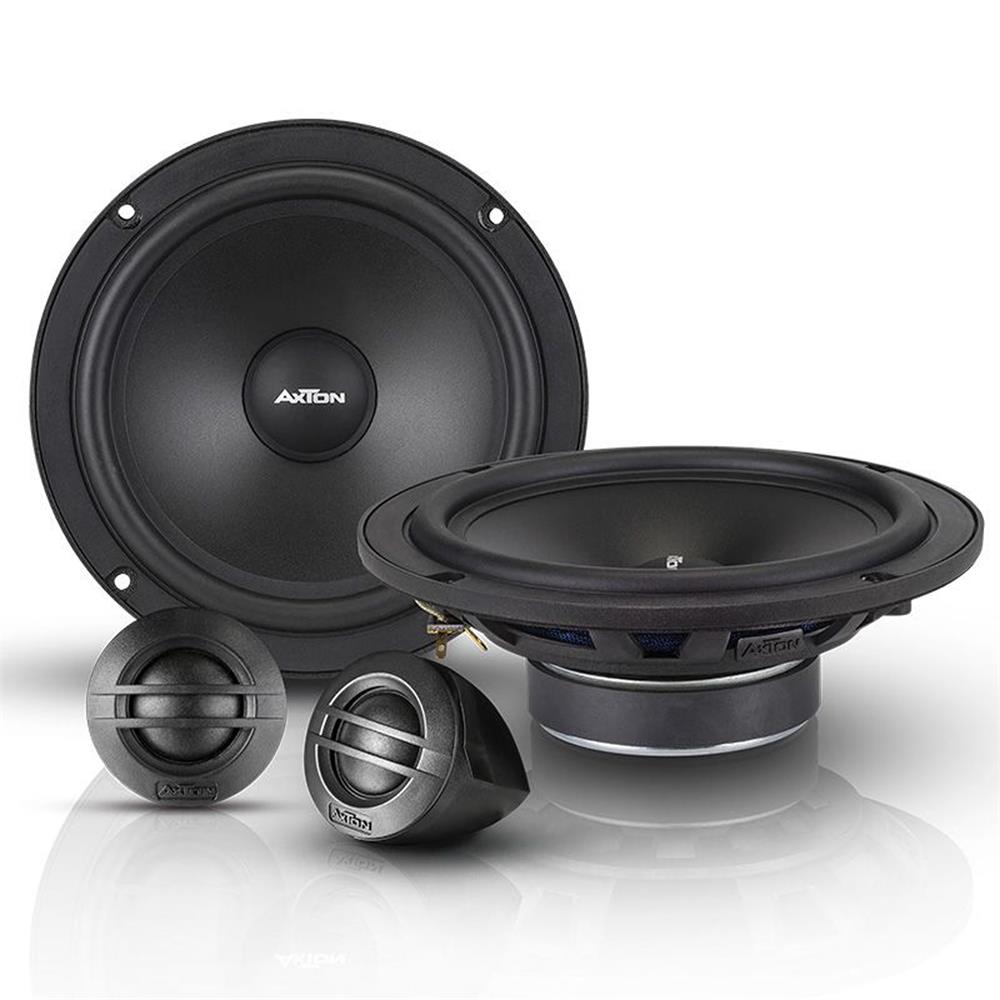

AXTON ATC165 Slim 16,5 cm (6,5") 2-Wege Compo System

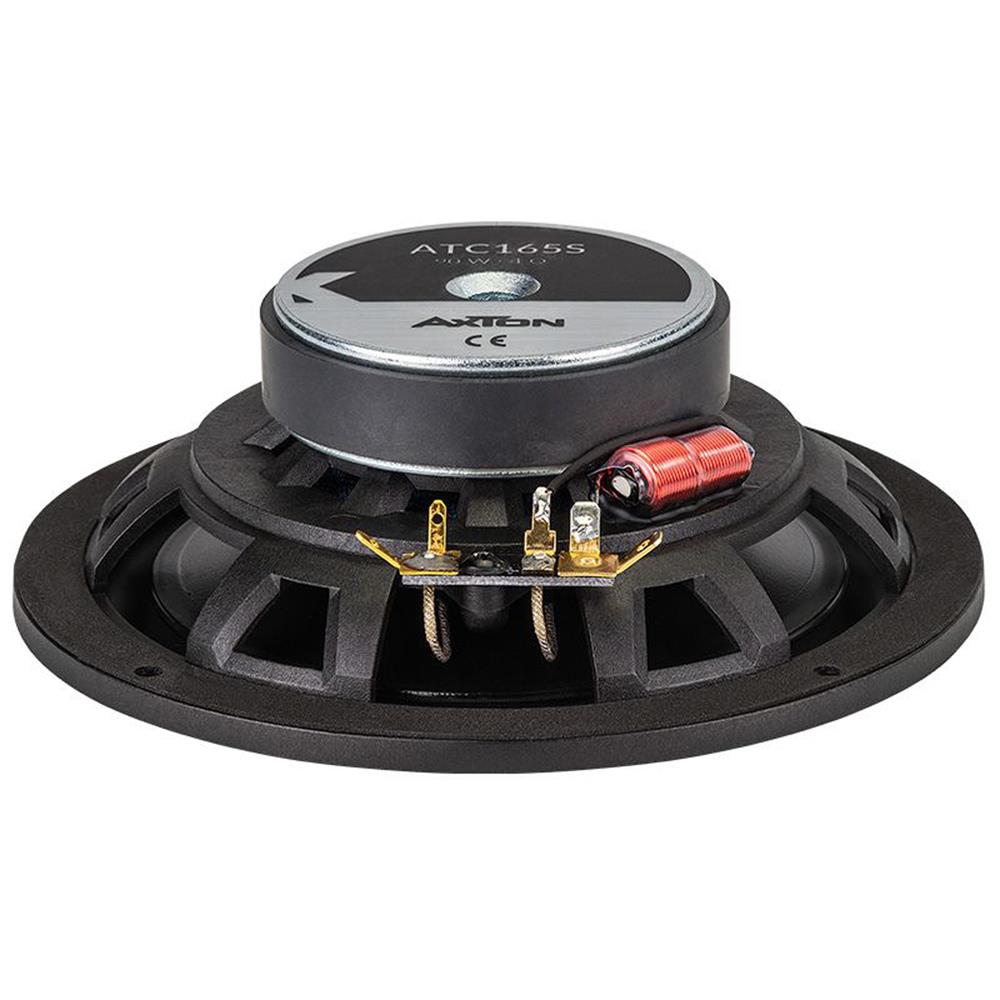

BASS/MIDRANGE DRIVER
Precision-made sheet steel basket
Strontium Ferrite Magnet
Low resonance polypropylene membrane
A linear working bead of NBR nitrile rubber
Ventilated NOMEX spider
Voice coil on polyimide carrier
Ventilated Nomex centering spider
Hard gold-plated, corrosion-resistant plug contacts
LS grille included in delivery

TWEETER
25 mm tweeter with fabric dome
Diffuser for best spatial imaging
Powerful neodymium magnet with ferrofluid cooling
Level reduction for the tweeter -3 dB/0 dB
Including a mounting adapter for surface and recessed installation

TECHNICAL DATA

Manufacturer: AXTON
Product titel: ATC165S
Product type: 2-way loudspeaker component system
Nominal power handling: 90 Watts
Maximal power handling: 120 Watts
Mounting diameter: 145 mm
Installation depth: 47 mm
Frequency response: 60 Hz – 25 kHz
Nominal impedance: 4 Ohm
Sensitivity (1 W / 1 m): 91 dB
Weight (incl. packaging): 2.8 kg
Colour: black

SCOPE OF DELIVERY
1x AXTON – ATC165S – 2-way loudspeaker component system consisting of:
2x mid/woofers
2x tweeters
2x crossovers
2x grilles for mid/woofers
1x set of mid/woofer mounting hardware
2x tweeter flat surface mounting adapter
2x tweeter angled mounting adapter
1x instruction manua
