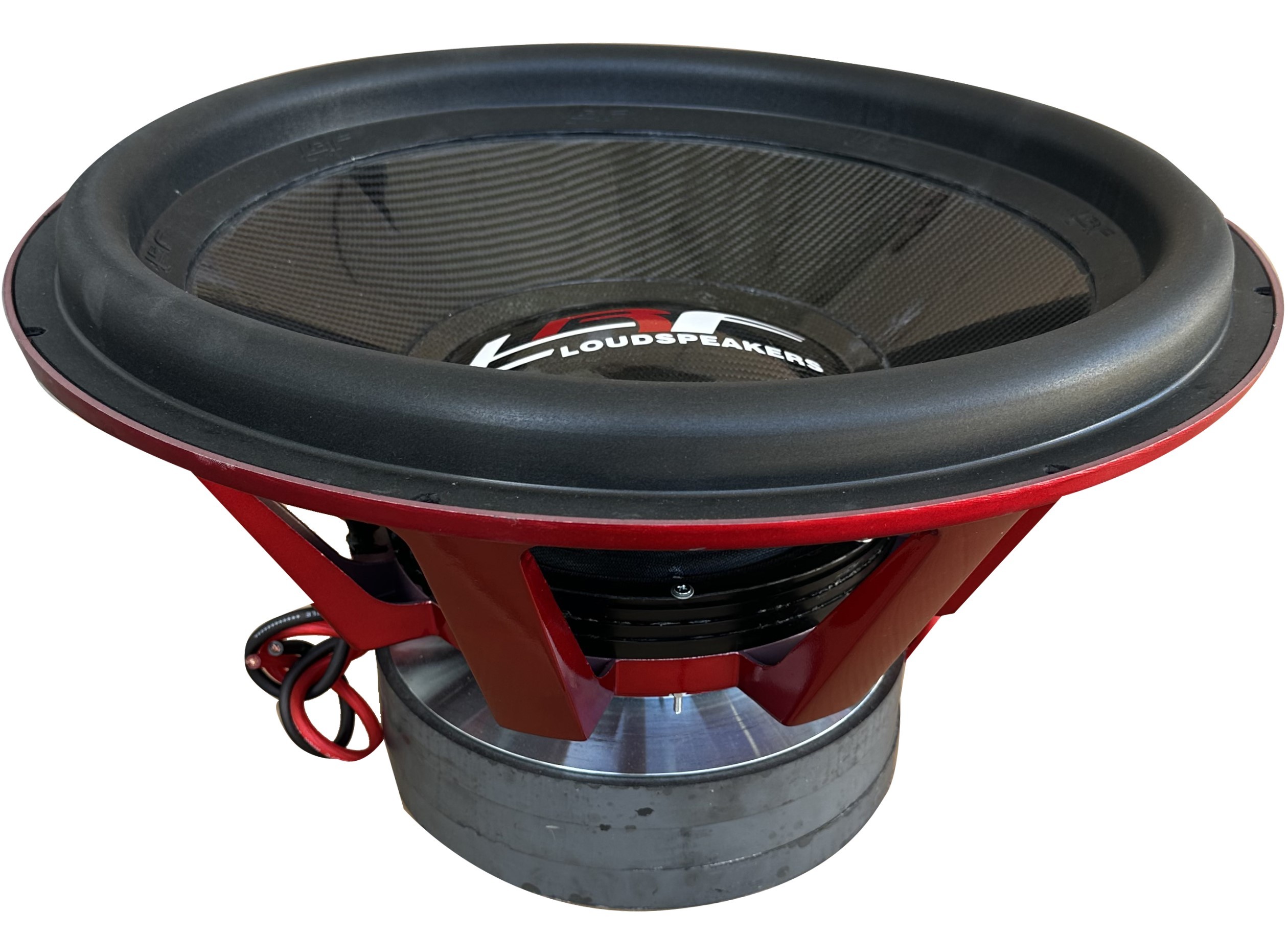

TRF SW32200PC D0.5

SPECIFICATION:
MODEL:TRF SPL SW32200PC D0.5
Size: 33nch
Cone: Competition Grade paper
Surround material: Foam
Voice coil made : MADE IN USA
Voice coil dimension : 6.0inch
Voice coil layer: 8layer
Dust cap : Carbon FROM MADE IN EUROPE
Nominal impedance:dual 0.5ohm
Voice coil wire:aluminium
Spider dimension : 6”ID / 15”OD
Spider material : NOMEX
Spider layers :6pcs x 2layers
RMS Power: 13.000 – 20.000wrms
MAX Watt: 40.000wmax
Sensitivity: 96dB
Vas: 650 L
Resonance frequency(fs): 20Hz
Mechanical Q factor(Qms):
Electrical Q factor(Qes):
Total Q factor:(Qts):
Xmax: 60mm
Force factor: N/A
Magnet Weight: 69kg
Net weight: 75kg
Basket:Die cast Alumium
Magnet: Ferrite
Magnet dimension:Φ330*25mm X 3PCS
1=Outer Dimension: 840mm – 33″
2=Mounting Depth: 450mm
3=Magnet Dimension: 330mm
4=Mounting Hole Dimension:770mm
