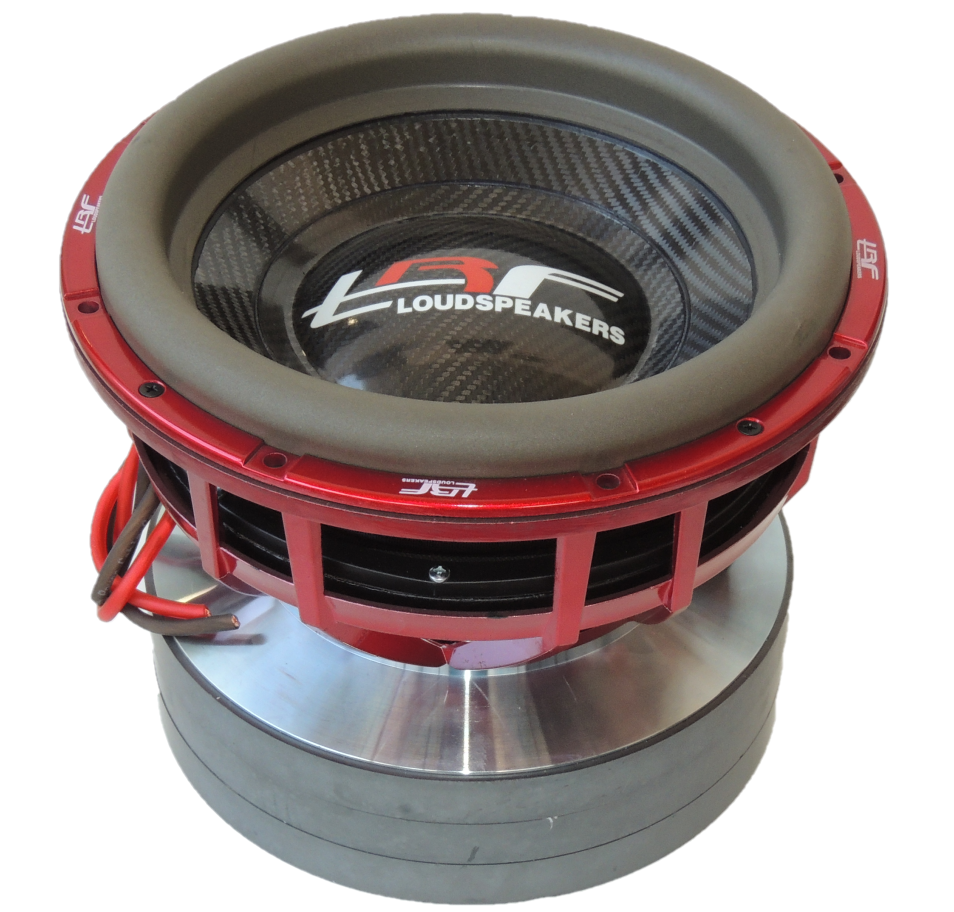

TRF SPL SW1265CC D1

MODEL: TRF SPL SW1265CC D1
Size: 12nch
RMS Power: 6500wrms
RMS Program: 20.000 – 25.000wrms 3sec
MAX Watt: 13000wmax
Cone: Carbon FROM MADE IN EUROPE
Dust cap : Carbon FROM MADE IN EUROPE
Surround material: Foam
Voice coil bobbin:Aluminium
Voice coil made : MADE IN USA
Voice coil dimension : 4.0inch
Voice coil layer: 8layer
Nominal impedance:D1
Voice coil wire:aluminium
Spider dimension : 4”ID / 10”OD
Spider material : NOMEX
Spider layers :4pcs x 2layers
Basket:Die cast Aluminium
Basket color:Red
Sensitivity:92 dB
Frequency range:37-100Hz
Fs: 37 Hz
Mechanical Q factor(Qms):
Electrical Q factor(Qes):
Total Q factor:(Qts):
Xmax: 30mm
Force factor: N/A
Magnet Weight: -Oz
Basket:Die cast Alumium
Magnet:Ferrite ”high performance magnet”
Magnet dimension:Φ280*25 mm 3PCS
GAUSS MOTOR:9000++
1=Outer Dimension: 320mm
2=Mounting Depth: 262mm
3=Magnet Dimension: 280mm
4=Mounting Hole Dimension: 280mm
Total weight :47kg
