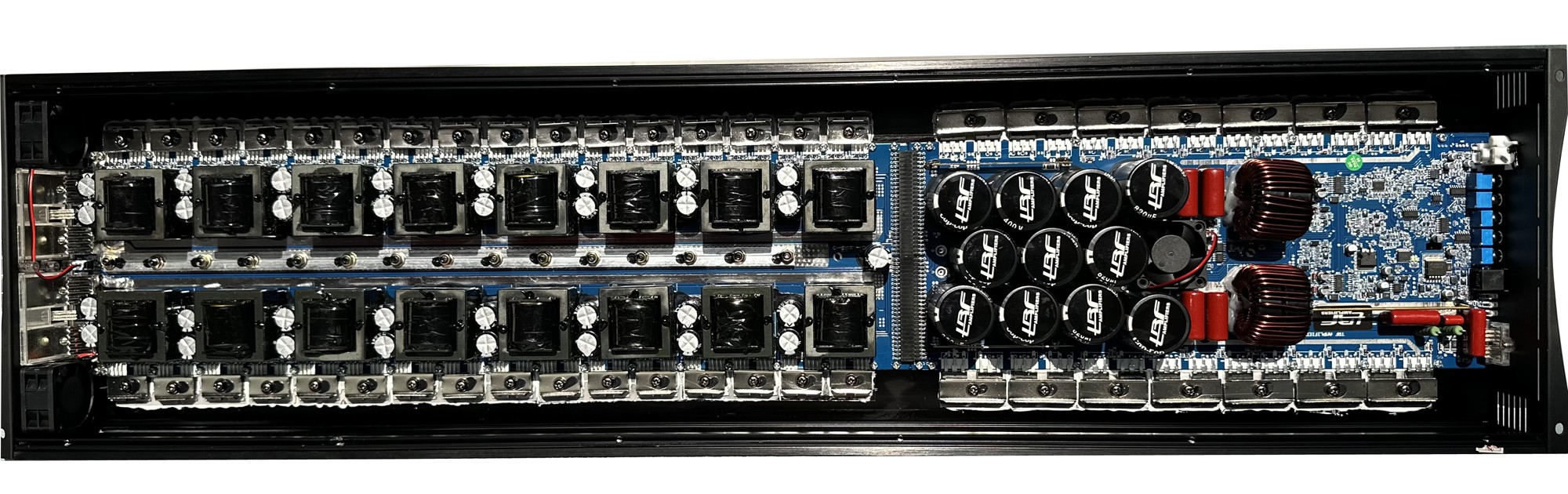

TRF SMD 35000.1D

TRF SMD 35000.1D
RMS 1X12000 4ohmRMS 1X22000 2ohmRMS 1X38000 1ohmTEST VOLTAGE % THD:14.4V-10%THD
RMS 1X9000 4ohmRMS 1X18000 2ohmRMS 1X32000 1ohmTEST VOLTAGE & THD:12.6V-10%THD

Freguncy response:10Hz-20KHzSignal to Noise : 100dB <Damping Factor : 800 <Working impedance : 1ohm monoInput Sensitivity : 0.2V to6VCrossover : 18db oct/ slopeBandpass Filter:hi Pass Filter : 15Hz to 80KHzlow Pass Filter : 80Hz to 20KHzBASS BOOST: 0 to 12 dbBAST BOOST FREQ: 35Hz to 70HzRemote controller CHECK:VOLTAGE/TEMP – PWR,PRT,CLIP .1X0 gauge power & speaker terminals4 oz copper printed circuit boardHeavy-duty heatsink3way protection :DC offset , Thermal , speaker shot .BURRBROWN OP AMP IC4 HAND-WOUND POWER TRANSFORMERS.Tested Voltage & THD : 14.4V & Less than 1% THDWorking voltage : 8.5V to16VFUSE RATING : 3300AMPERHeight: 66mmWidth: 225mmLenght: 925mm
