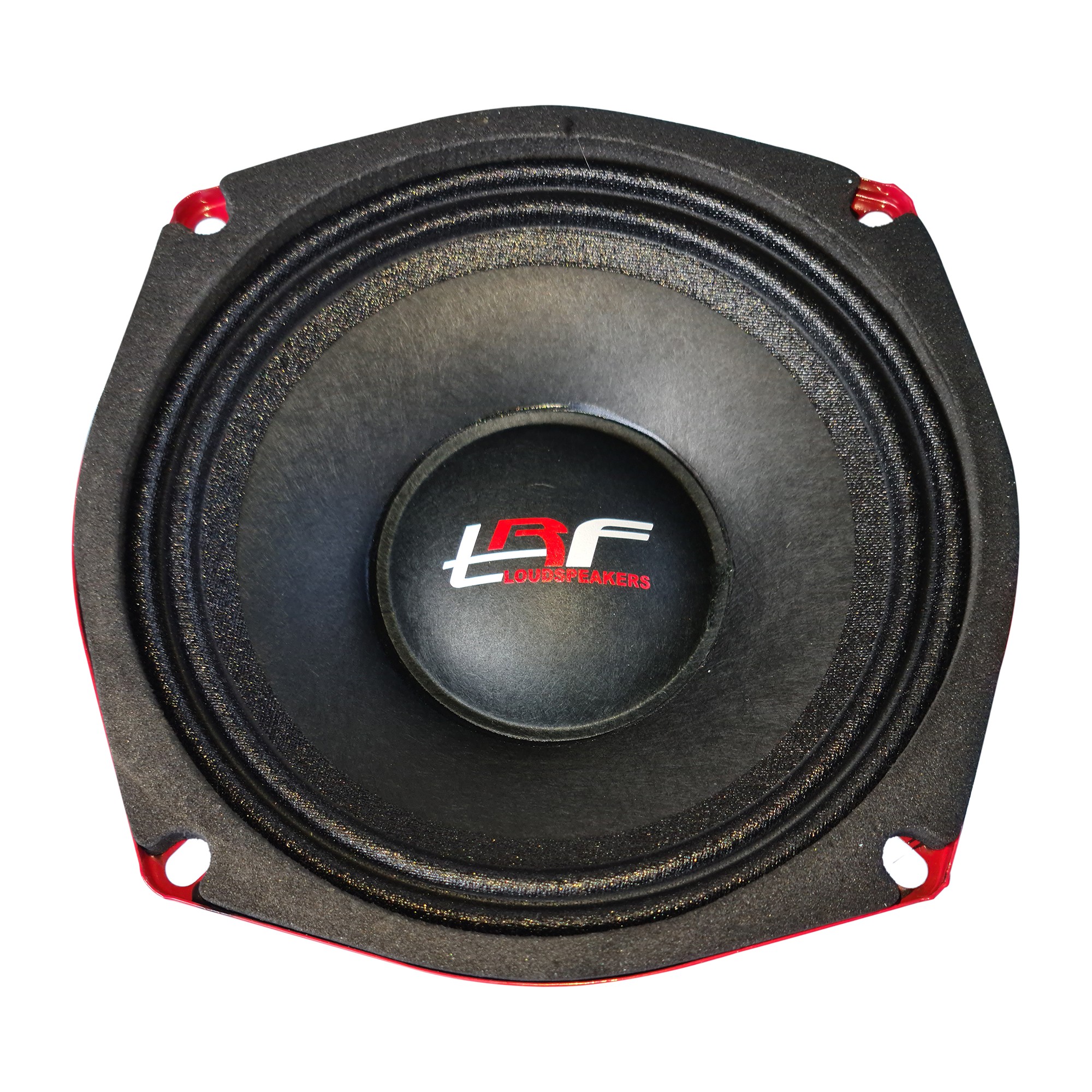

TRF 5MR180ND

MODEL: TRF 5 MR180ND
Nominal diameter:              5.25inchPower MAX:                       200WPower PROGRAM RMS :  180WPower RMS:                      100WNominal impedance:          4ΩSensitivity (1w/1m):           95DBMagnet:                             NeodymiumVoice coil diameter:          1.5”Frequency range:             150-13500 HzMagnet dimension:           Φ75*6mmX1PCS
Vas:2.35l
Fs:149 Hz
Qms: 4.39
Qes: 0.56
Qts: 0.5
Sd: 96.7cm2
Mmms:6.44g
Bl:5.84Tm
Re (D.C.):3.2Ω
Basket:Die cast IRON
Cone and dust cap:Paper
Surround:Cloth
Voice coil wire:CCAR
Voice coil bobbin:KSV

Over all diameter: Φ135.5mmBolt circle diameter: 4holes-Φ5mm – Φ135.5 mmCut out diameter: Φ121 mmDepth: 58 mmNet weight: 0.800 kgXmax:± 3mm
