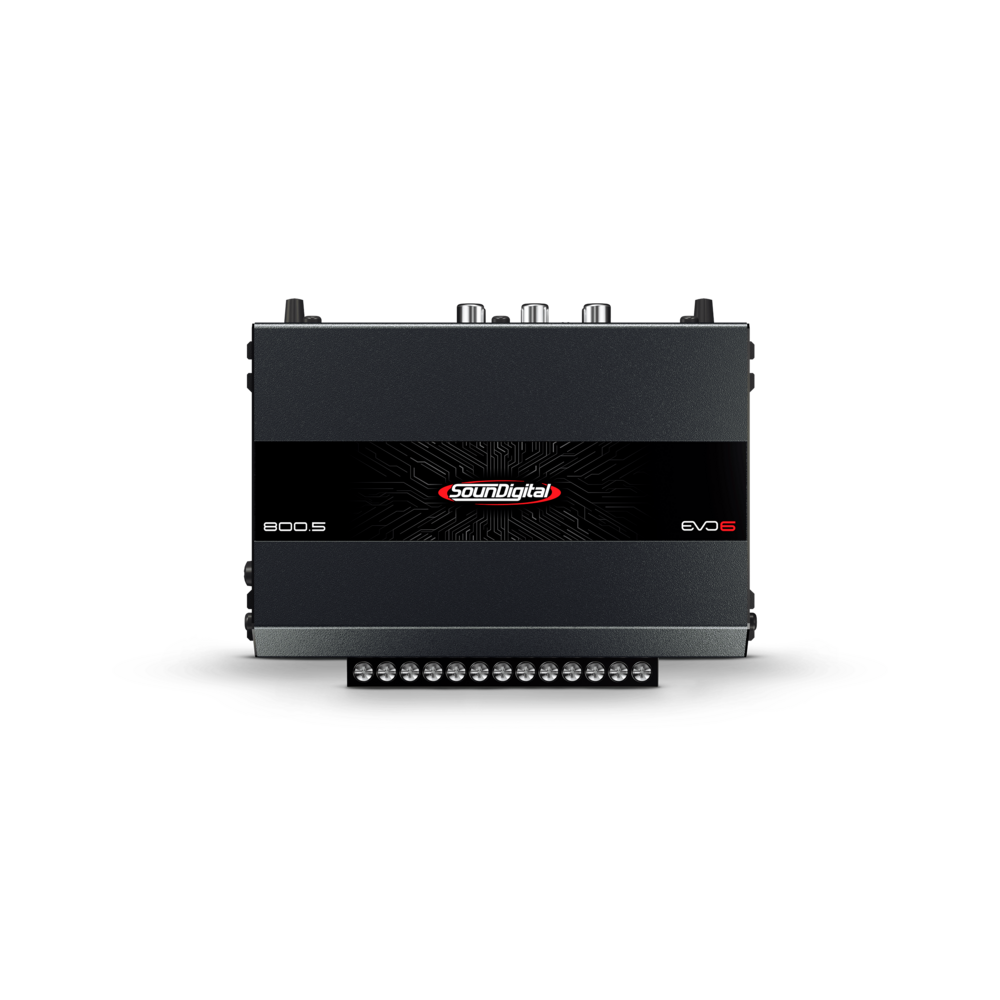

SD800.5 EVO6

800.5 EVO6 – 4 OHMS

Power @ 4Ω: 4 x 100W RMS
Power @ 8Ω: 4 x 66W RMS
SUBWOOFER: 4Ω: 1 x 400W

Bridge Power @ 8Ω: 2 X 200W RMS
SUBWOOFER: 8Ω: N/A

Frequency Response (-3dB):

80Hz ~ 25kHz
SUBWOOFER: 5Hz ~ 80Hz

Low Pass Filter (12dB/octave):

80Hz

High Pass Filter (12dB/octave):

80Hz

Operating Voltage:

9V ~ 16V

SNR:

103.88dB
SUBWOOFER: 102dB

Input Sensitivity (RCA):

0.2V ~ 2V

Current Draw (music):

39A

Current Draw (max.):

78.7A

Total Efficiency:

80%

Damping Factor (@100Hz nominal impedance):

200

Power Cable:

10mm² (7 AWG)

Speaker Cable:

1.5mm² (15 AWG) / 2.5mm² (13 AWG)

Recommended Fuse (music):

40A

Recommended Battery (minimum):

60Ah

Width:

6.01″ / 15,7 cm

Lenght:

4.52″ / 11,7 cm

Height:

2.07″ / 5,5 cm

Weight:

0.74 kg / 1.63 lb
