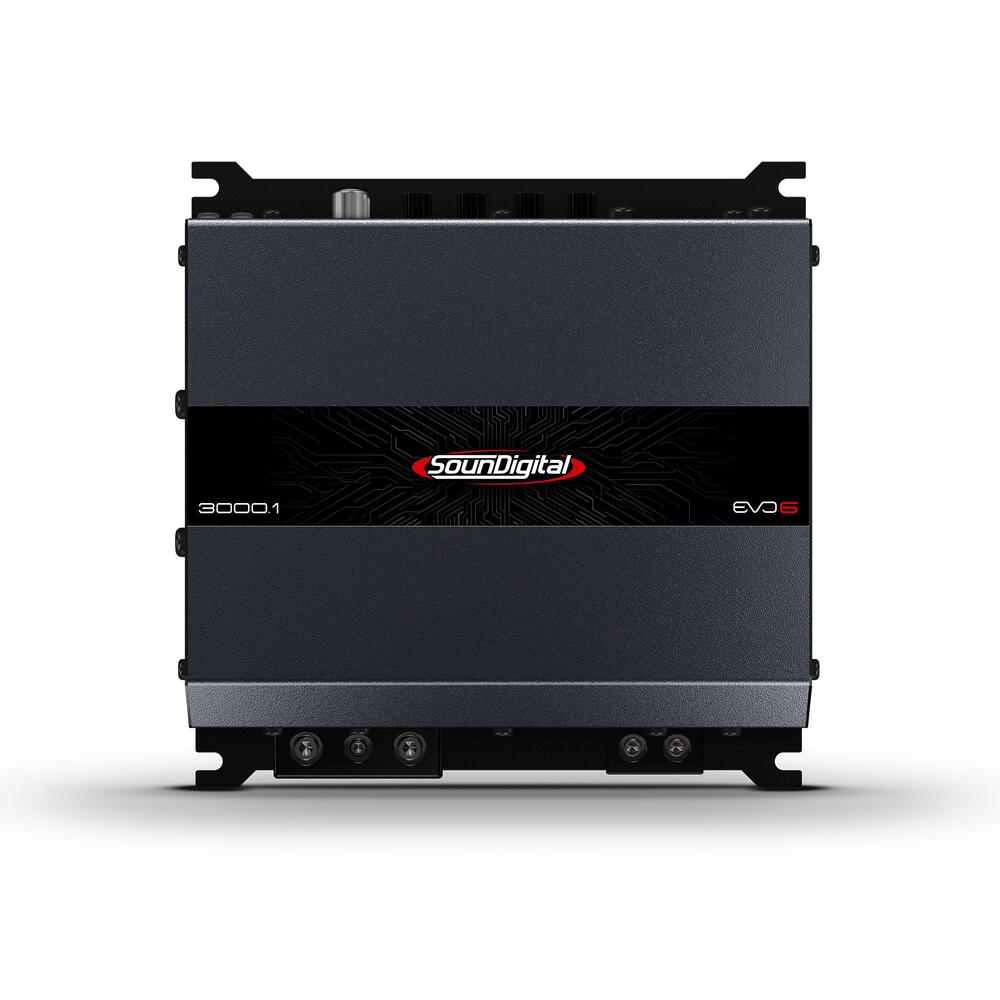

SD3000.1 EVO6

The 3000.1 EVO6 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Frequency Response (-3dB):

  5Hz ~ 20kHz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Low Pass Filter (12dB/octave):

  80Hz ~ 20kHz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  High Pass Filter (12dB/octave):

  5Hz ~ 80Hz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Operating Voltage:

  10V ~ 16V

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  SNR:

  >90dB

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Input Sensitivity (RCA):

  200mV

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Current Draw (music):

  140A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Current Draw (max.):

  280A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Power Cable:

  35mm² (2 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Speaker Cable:

  6mm² (9 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Recommended Fuse* (music):

  150A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Recommended Battery (minimum):

  150Ah

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Width:

  5.92 / 15,5 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Lenght:

  5.80 / 14,7 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Height:

  2.38 / 6,6 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg’) repeat;”>

  Weight:

  1.47 kg (3.24 lb)
