S165 M2 Mg

S165 M2 Mg

Description

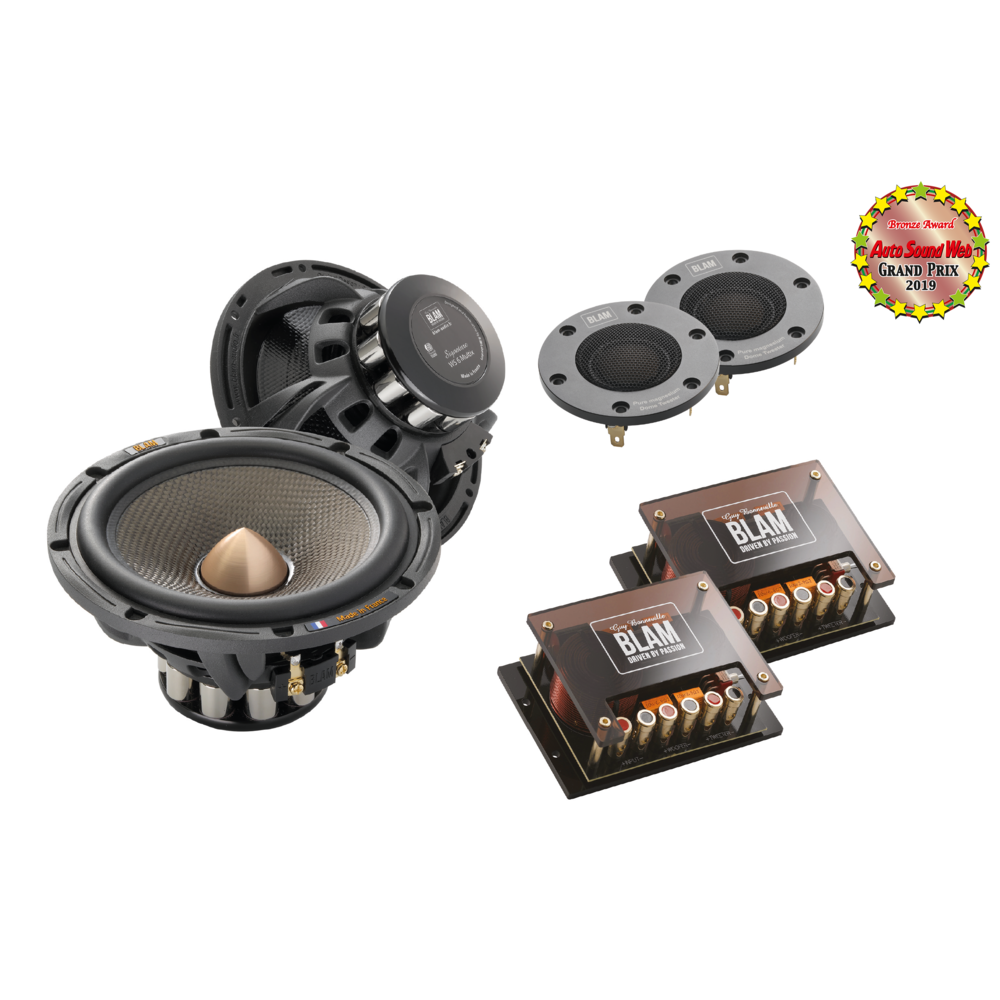

This kit is composed of two woofers 165 mm (6.5’’), two 25 mm (1’’) magnesium dome tweeter and two Multix WT audiophile 12 dB/octave high pass crossovers with the tweeter level adjustable: +3dB, 0dB or -3dB.



Composition

Woofer WS6 – HIGH POWER WOOFER

6-1/2‘‘ (165 mm) woofer

Maximal power: 250 W / Nominal power: 125 W

Frequency response: 80 Hz – 6 KHz

Sensitivity: 94 dB – Impedance : 2 Ω



Casted aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB



Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER

25 mm (1’’) pure magnesium dome tweeter

Frequency response ultra extended

Sensitivity : 89.8 dB – Impedance : 5 Ω



Very powerful ring neodymium magnet

 – High precision machined aluminium face

 – Sound transparent protection grill –

Low resonance rear chamber



Available in two colors : black and gold





Crossovers Multix WT 2 ways AUDIOPHILE GRADE CROSSOVER

12 dB/octave high pass crossover

adjustable tweeter level +3dB, 0dB or -3dB

Audiophile components
