RTX654
50.00 €
RTX 16,5cm 6.5” 4Ω 125W RMS High Efficiency Midrange
ΤΕΜΑΧΙΟ
Διαθέσιμο από 1 έως 3 ημέρες
Περιγραφή

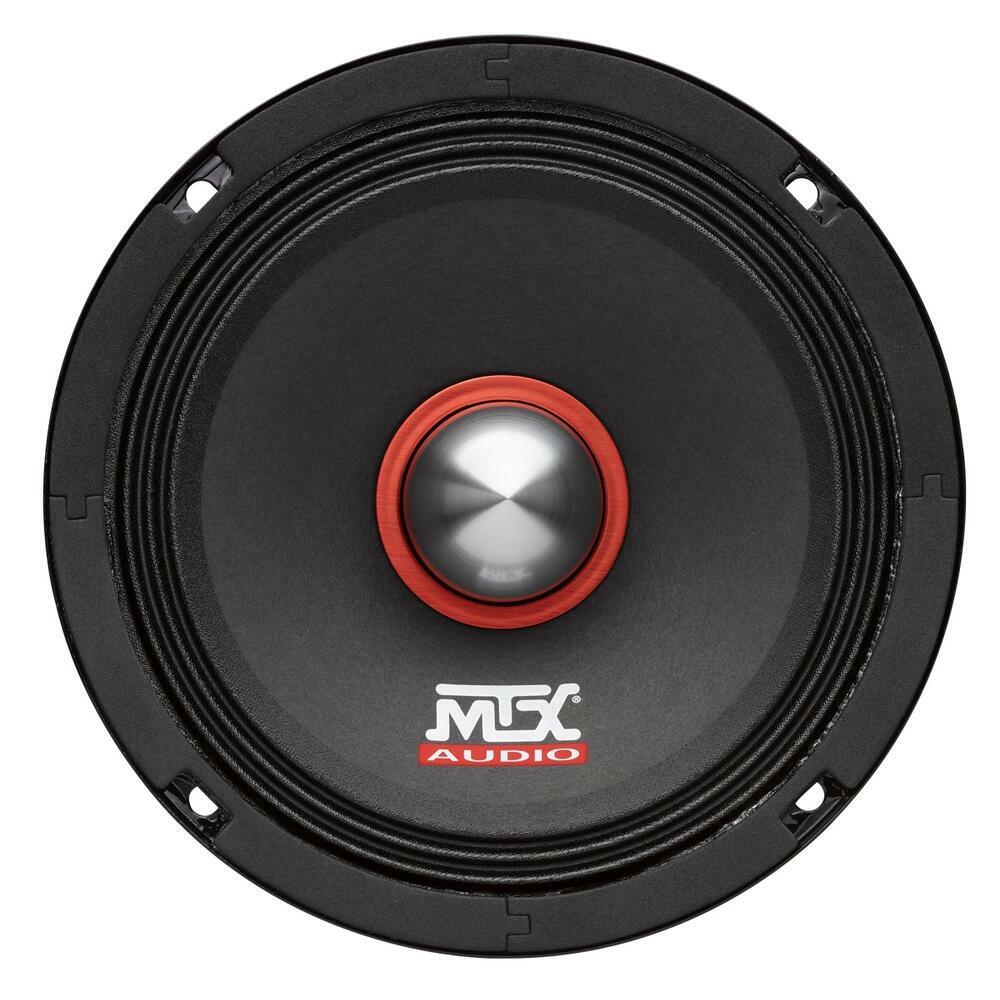

MTX RTX 654
Specifications
High efficiency midrange
Diameter : 16,5cm (6.5“)
Max Power : 500W
RMS Power : 125W
Sensitivity : 97,2dB/2,83v/1m
Impedance : 4Ω
Freq. response : 150Hz – 10000Hz

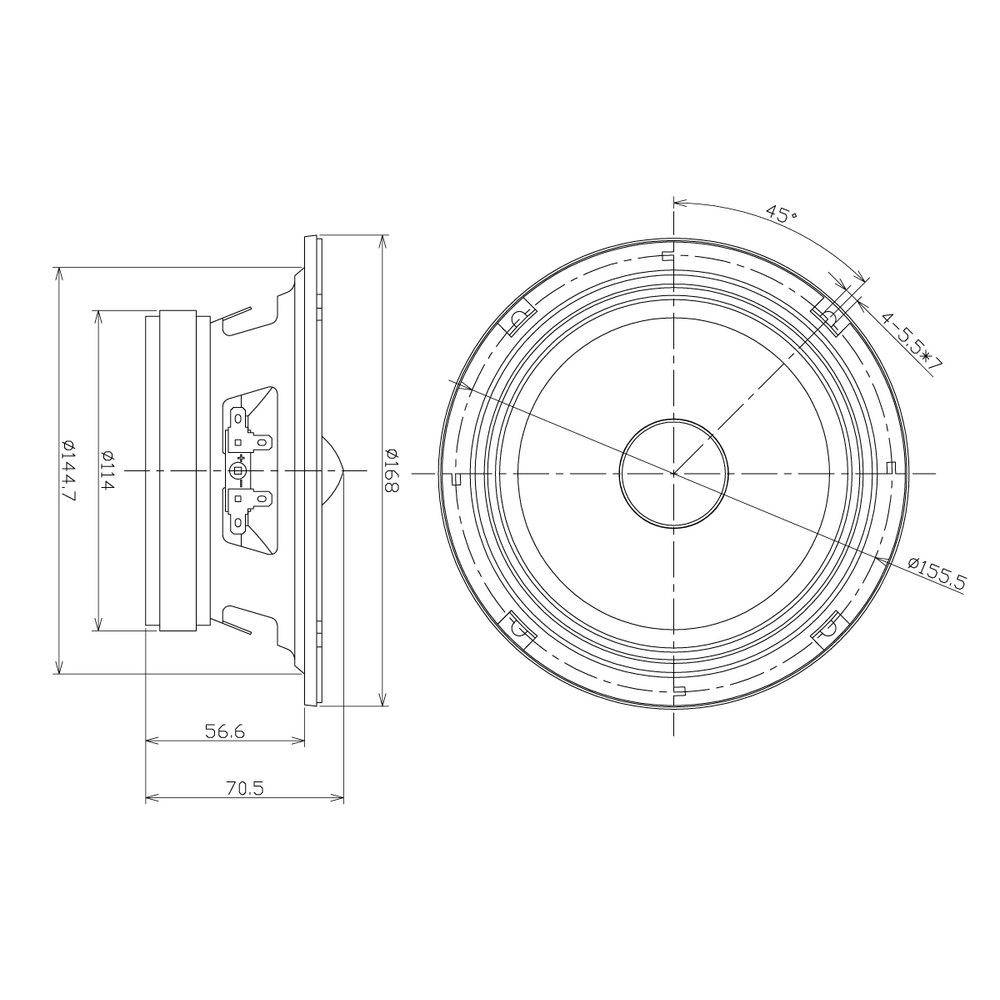

Mounting Depth : 56,6mm
Recommended x-over : >150Hz
Fs : 145Hz
Parameters
• Re : 3,04Ω
• Le : 0,205mH
• L2 : 0,238mH
• R2 : 2,03Ω
• Cmes : 315,77μF
• Res : 54,31Ω
• Fs : 145,3Hz
• Mms : 11,501g
• Mmd : 9,773g
• Rms : 0,671 Kg/s
• Cms : 0,104mm/N
• Kms : 9,58N/mm
• Bl : 6,035N/A
• Qms : 15,652
• Qes : 0,875
• Qts : 0,829
• Vas : 2,6027 liters
• Sd : 132,73cm2
• Lnom : 97,2/2,83V/1m
Features
Exceptionnal sound quality with an incredible sence of music…
38mm giant voice coil for more power handling
115mm extra large strontium magnet for a better cone control and more power handling
Compressed paper cone for more efficiency, softness and high quality sound
Treated Cloth edge suspension for a better efficiency
Highly detailed midrange Good bass response
Easy to install – Fits into the origianl 6.5“ 16,5 cut outs (Ø145mm)
Sold by piece – You need two RTX654 for a stereo system
Design to work fine with
MTX RTX2BTs or RTX4BTs tweeters
Design to work fine with MTX TX2275 TX2450 TX480D RFL4120 amp
Επιπλέον πληροφορίες
| Βάρος | 1 κ. |
|---|
