Musway D 8

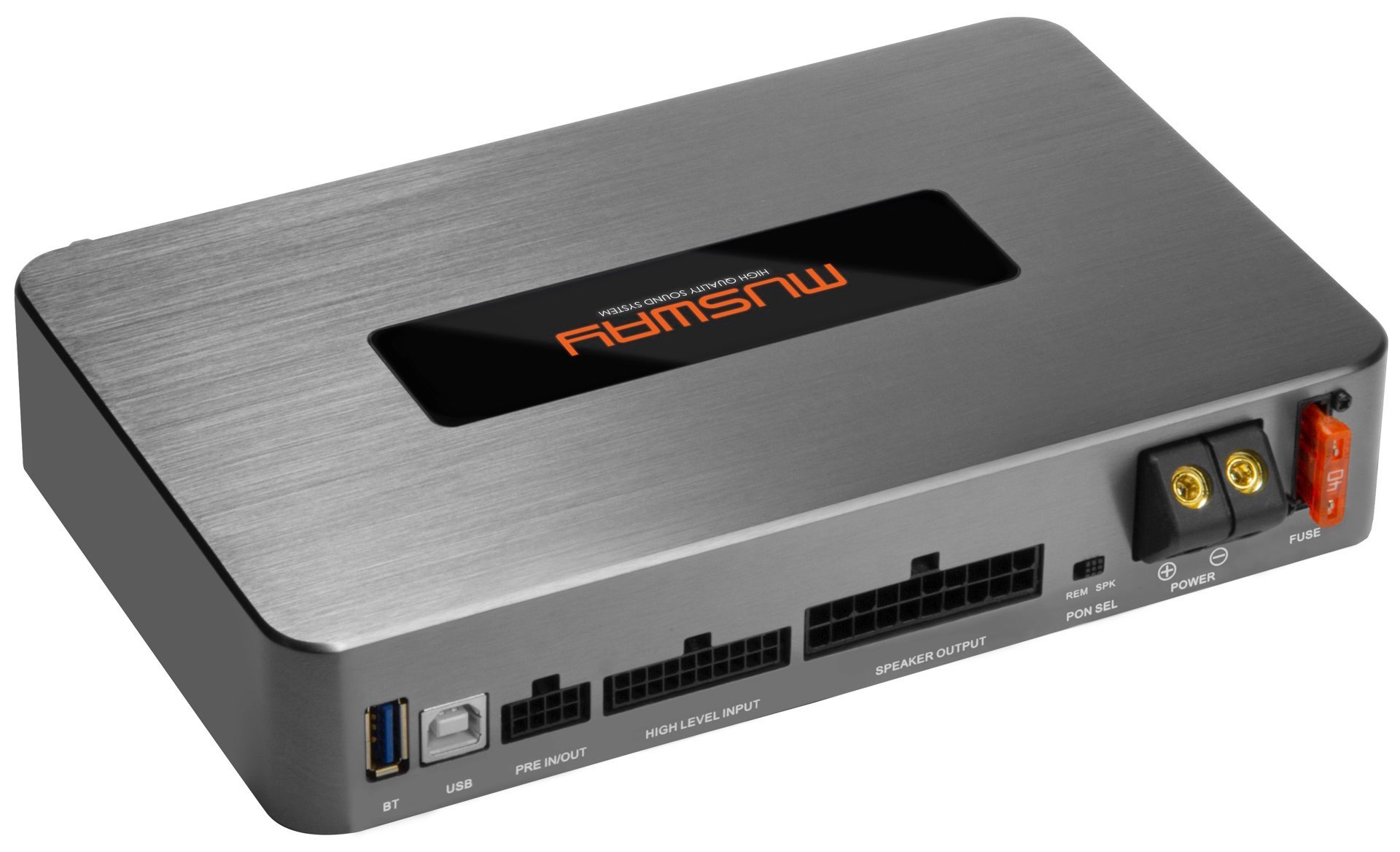

With the D8 model MUSWAY delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels, including a freely configurable 10-Channel DSP. Each channel is bridgeable and generates a 2 ohms power of 75 Watts RMS, thus a total of 600 watts RMS. In principle, the D8 Amp offers the same features as the M6, but with two amplified outputs and two additional DSP channels. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.   As a bonus on top in this configuration a bridged output with 150 watts RMS to 4 Ohmss for a mid-size subwoofer would be available. Like the M6, the high-quality audio components and a DSP from Texas Instruments™ are also part of the design of the multi-layer PCB. Also on board is a flexible multi-level input with Error Protection System, a soft-clipping speaker protection for 2 Ohm operation and an automatic turn-on function, so that the connection to OEM radios does not cause any problems. • Intelligent High Level Input (Error Protection System) • Start-Stop ready, Auto Turn-On • Soft-Clipping (power attenuation) in 2 Ohm operation • Signal-to-noise Ratio ≥90dB • Frequency Response 15 Hz – 22 kHz (-3dB) • THD ≤0,1% (1 kHz, 4Ω, 90% Power) • Dual 32bit, 330 MIPS DSP technology controllable via PC software or APP • External Bluetooth® USB-Dongles (BTS & BTA) for Audio Streaming/APP (optional) • Digital remote control (DRC1) with LCD for controlling various DSP functions (optional) • QUICKCONNECT Terminal to connect all  MUSWAY 2+2 Ω Subwoofer-Systems 8-CHANNEL CLASS D AMPLIFIER WITH 10-CHANNEL DSP · 600 WATTS RMS 8 x 50/75 Watts RMS @ 4/2 Ohms or 4 x 150 Watts RMS @ 4 Ohmss bridged 8 x High Level Inputs, 2 x AUX/RCA Inputs 1 x Optical Input/Stereo 8 x Loudspeaker Outputs amplified 2 x Pre-Amplifier Outputs/RCA (configurable via DSP) Dimensions in mm: 205 (L) x 127 (W) x 37 (H)
