MAX PA1-500.4DZ1 Τετρακάναλος Ενισχυτής Αυτοκινήτου 4ch Gas Audio Power

MAXIMUM EFFICIENCY EVOLVED

The MAX PA1 series amplifiers are the next generation high efficiency, full range, Class D amplifiers – engineered to perfection with handpicked, high-grade components and innovative design features that guarantee long-time, maximum output performance.

VCC – OPTIMIZED AIR FLOW

The unique heatsink, in extruded aluminum with a reinforced A-star backplate, features thermal properties developed to optimize and control the amplifier temperature. The GAS VCC (Vented Cross Cooling) system keeps cool air flowing constantly forward over the components, forcing out the hot air through the thermal openings in the opposite side of the chassis.

HIGH QUALITY VERSATILITY

The advanced, full range, class D circuitry on a 4-layer PCB allows any type of speaker to be connected – subwoofers, drivers, tweeters or coaxial speakers. The high pass filter is adjustable between 15-6000Hz, and the low pass filter is adjustable from 50Hz up to 6000Hz. To fine tune the bass frequencies (45Hz) on channel 3 and 4 there is a 0-12dB Bass EQ level control.

POWER MANAGEMENT AND CONTROL

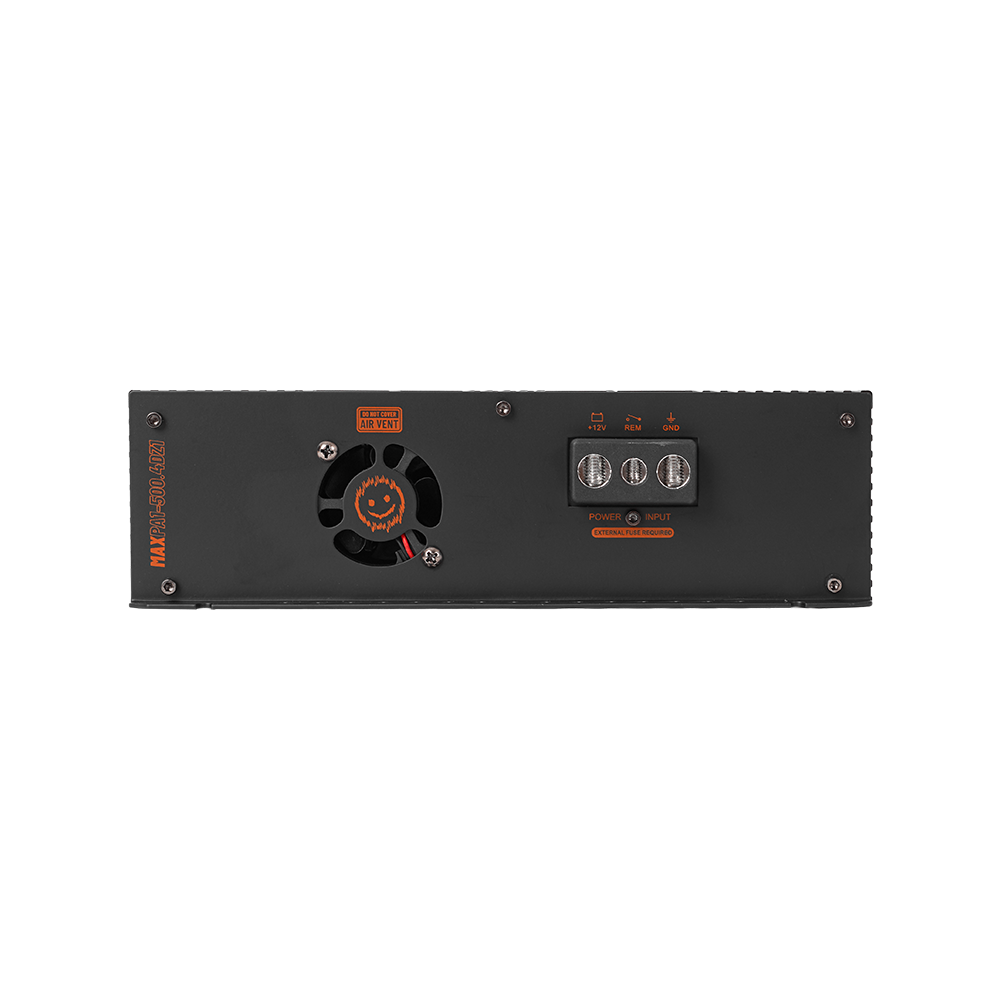

The high-power, continuous output from the MAX PA1 series is made possible thanks to a high-voltage, stabilized power supply that fully monitors voltage variations from the car’s battery. The amplifiers also have a 4-way protection circuit system; Thermal-, Short circuit-, Overload Protection and a Turn on delay. Setting (and maintaining) the correct output level is optimized thanks to the Clip LEDs on the amplifier. No clip light indicates that the distortion is less than 1%, anything above and the advanced protection circuitry kicks in.

SIZE MATTERS

Using accurate sized cables will improve the current flow. MAX PA1-500.4DZ1 have been equipped with plus-size 8AWG (10mm²) speaker cable outputs and actual sized 0AWG (50mm²) power and ground connectors, made to secure maximum performance.
