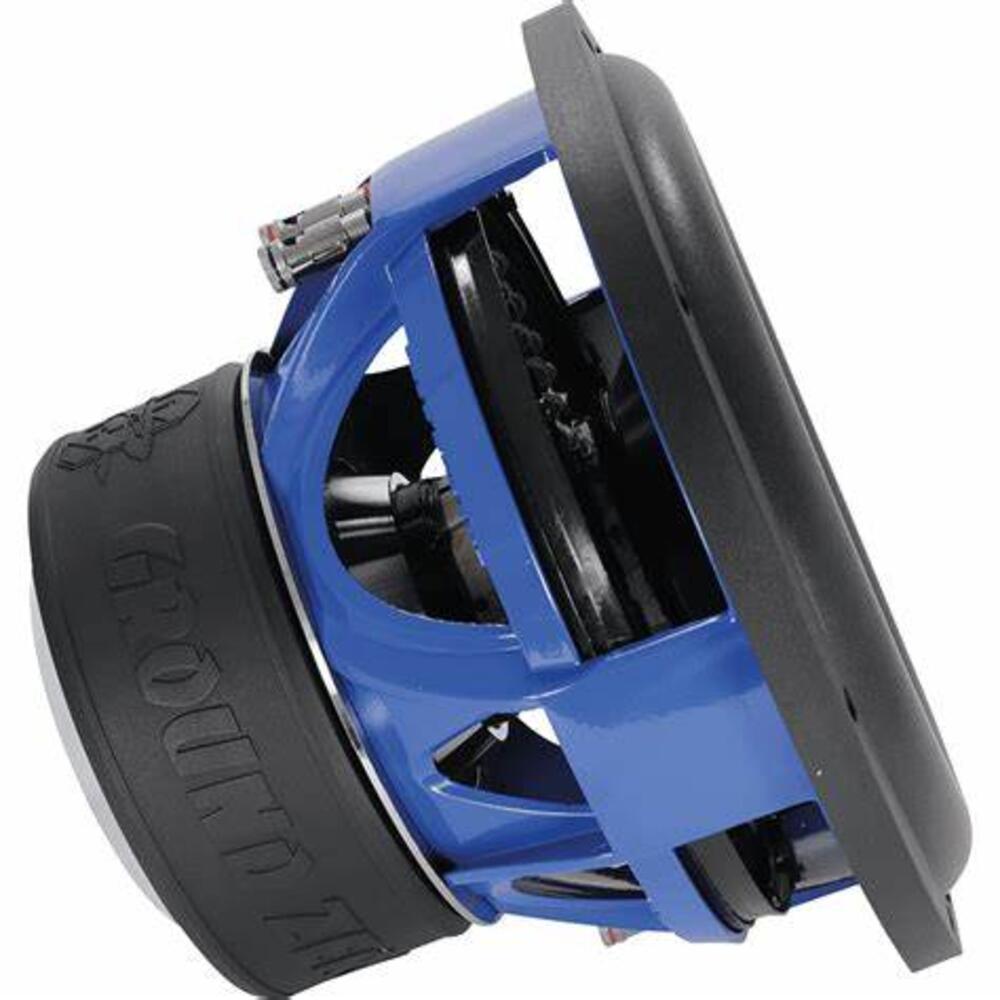

GZNW 12X-D2

2000 Watts SPL

12″ long excursion subwoofer with aluminum cone

• 12″ long excursion subwoofer
• Klippel® optimized
• Aluminum Cone & dust cap
• High-roll surround
• Solid, blue aluminum cast basket
• 75 mm / 3″ copper round wire voice coil
• 4-layer polycotton spider
• Model Long excursion Subwoofer Diameter 30 cm / 12″ Power handling (RMS/SPL) 2000 / 3500 Watts Impedance 2x 2 Ohms Efficiency 83 dB Power recommendation 1500 – 3500 Watts Voice coil 75 mm / 3″ copper Cone Aluminum Max. Excursion (Xmax) 62 mm / 2.44″ Mounting Ø 282 mm / 11.1″ Mounting depth 210 mm / 8.27″ Resonance frequency (Fs) 21.8 Hz Damping ratio (Qts) 0.33 Equiv. air volume (Vas) 35 L / 1.24 cu.ft.
