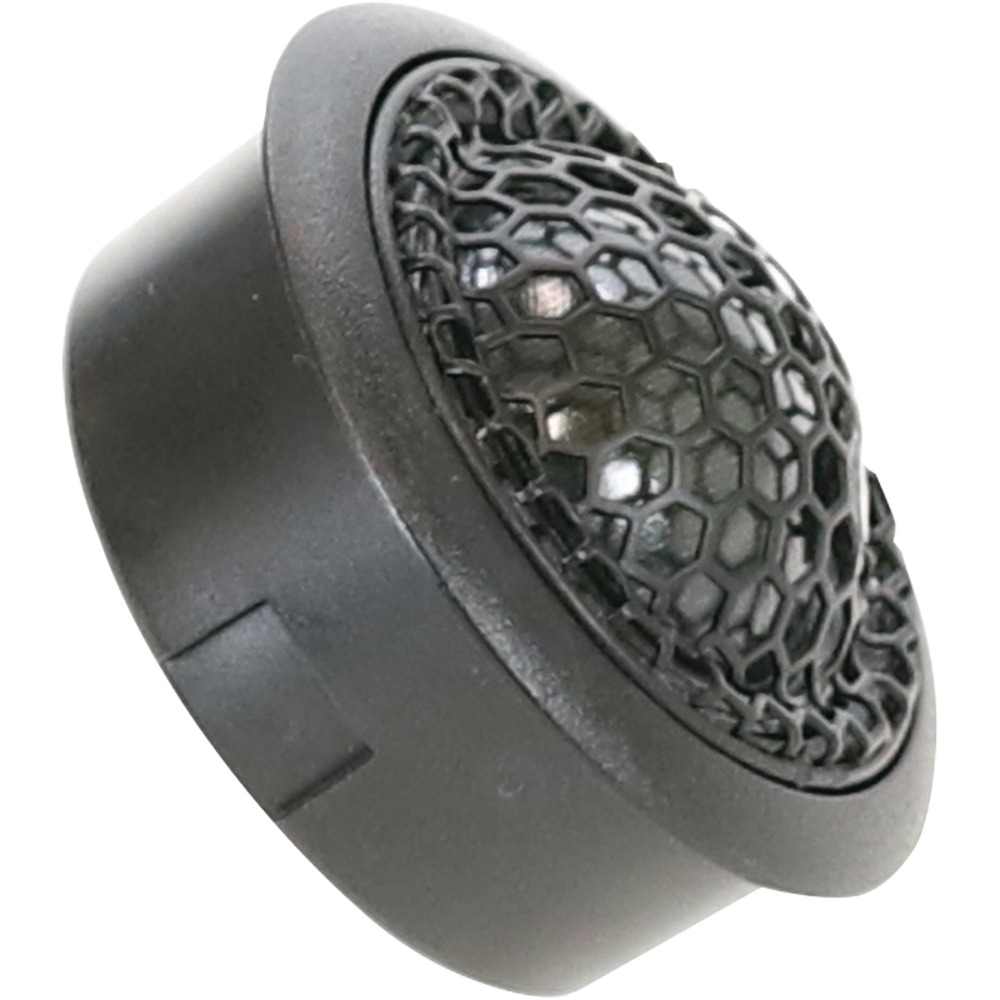

GZNT 28SQ

140 Watts max

1.1″ high performance silk dome tweeter with coupled chamber

• 28 mm / 1.1″ high performance tweeter
• Coated silk dome
• High power capable copper voice coil
• Anodyzed aluminum housing
• Damped coupled chamber
• Neodymium motor
• Gold plated screw terminal
• 1 pair / package

• Model	High-Performance Tweeter
  Diameter	28 mm / 1.1″
  Power Handling (RMS/max.)	90 / 140 Watt
  Impedance	4 Ohm
  Efficiency	91 dB
  Frequency Response	2000 Hz – 25 kHz
  Schwingspule	28 mm / 1.1″
  Recommended High Pass Filter	3000 Hz @ 12 dB/oct
  Membran Layout	Coated silk dome
  Magnet Material	Neodymium

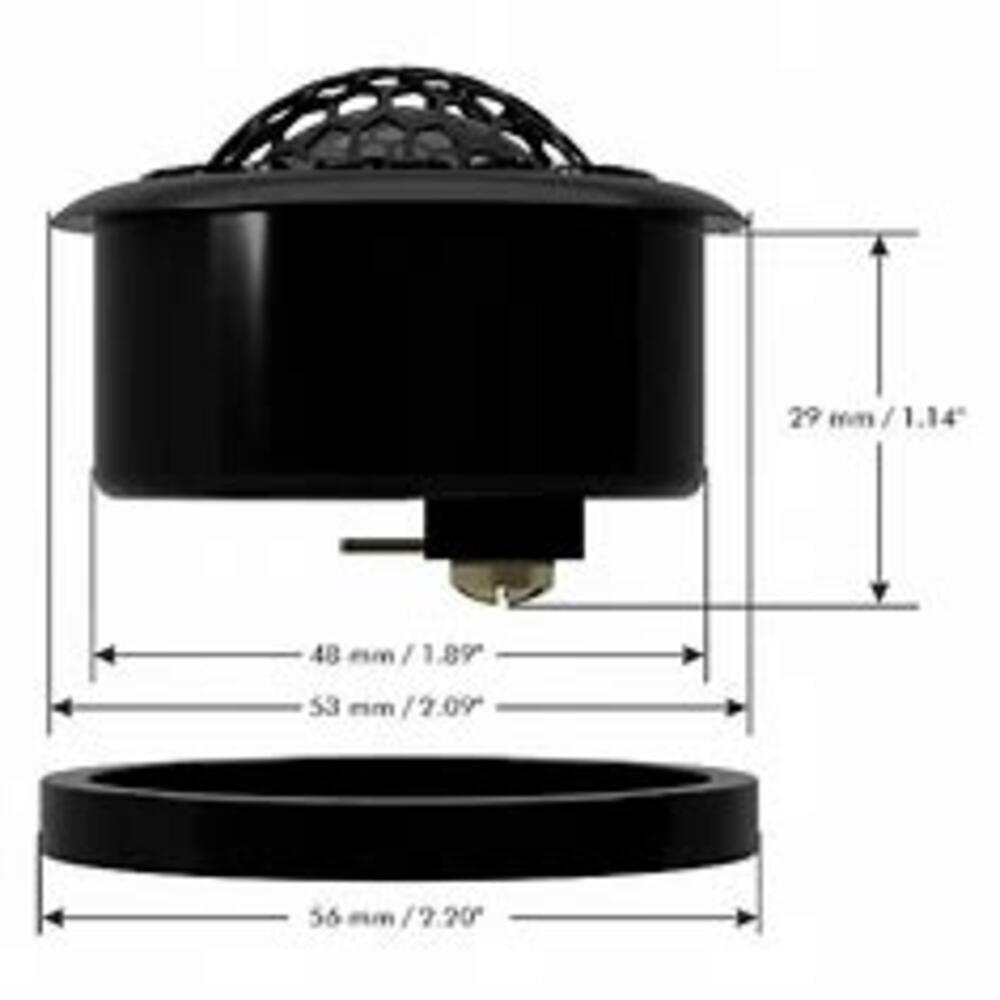

  Mounting Ø	48 mm / 0.19″
  Mounting Depth	29 mm / 1.14″
  Resonance Frequency (Fs)	1350 Hz
