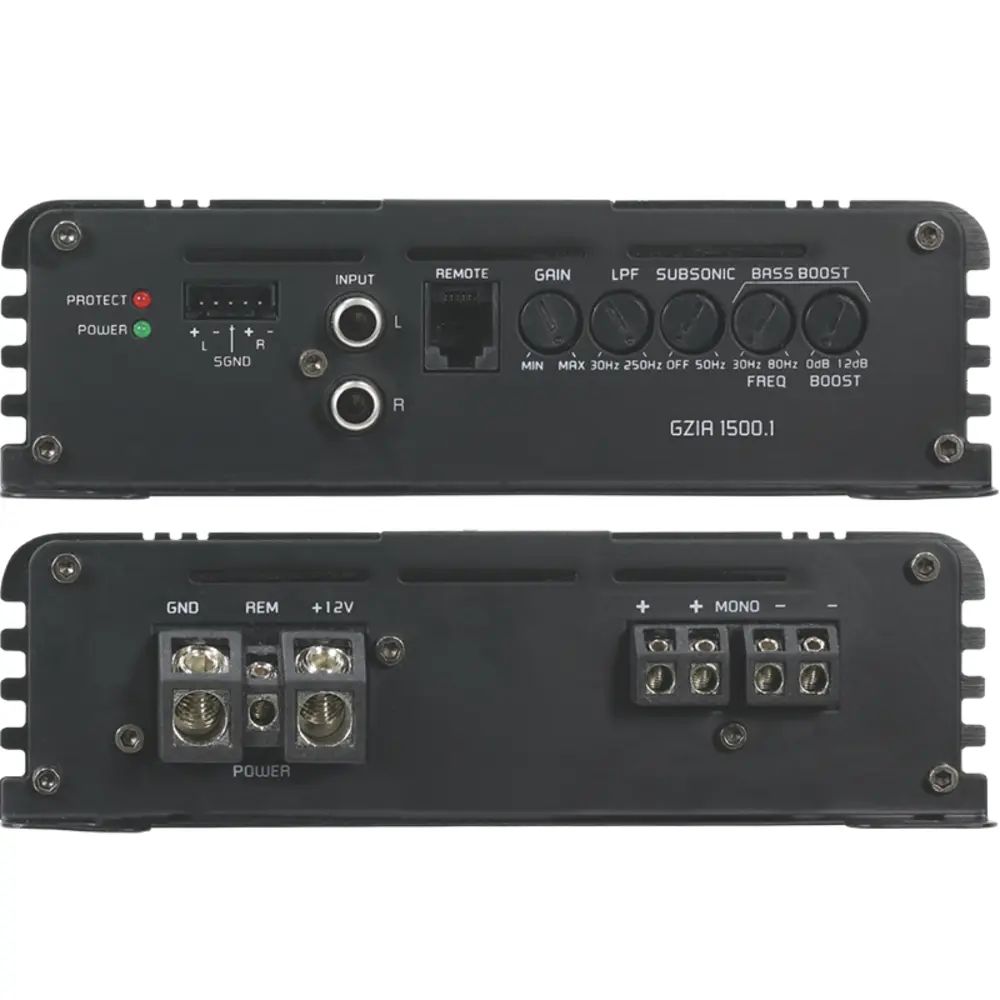

GZIA 1500.1

Powerful class D amplifier

1-channel subwoofer amplifier with class D circuit, integrated active crossover and regulated power supply

• Mono amplifier
• 1 ohm stable
• Class D technology
• Variable active crossover and bass boost
• High-level input with auto-on function & dummy load
• GZ-PowerBalance power supply regulation
• Large terminals
• Black anodized heatsink with Ground Zero lettering

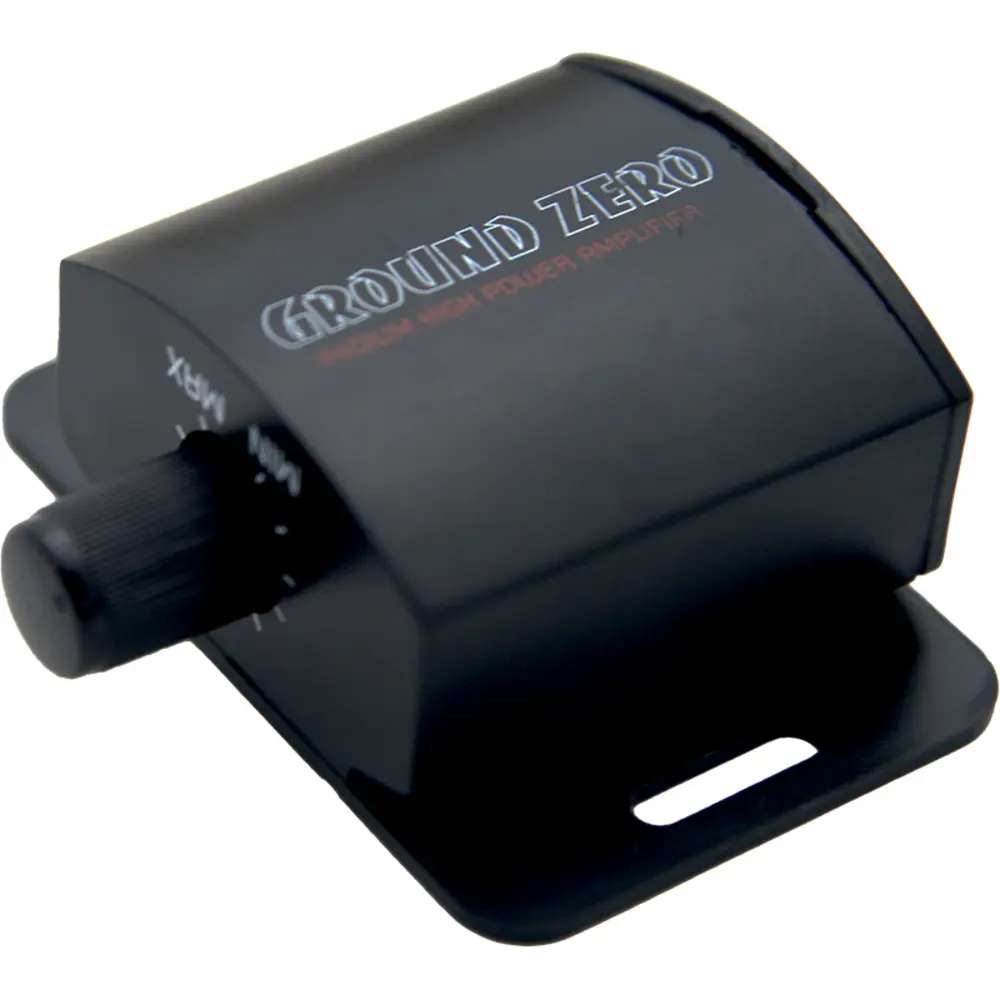

• Bass remote control included
• Triple protection circuit

• Model	High quality class D amplifier
  Channels	1
  Output Power (@ 4Ω)	430 Watts RMS
  Output Power (@ 2Ω)	850 Watts RMS
  Output Power (@ 1Ω)	1530 Watts RMS
  max. Output Power (CEA-2006A / 10%THD+N)	1900 Watts
  Frequency Response	10 – 250 Hz
  HPF / LPF / BPF	● / ● / ●
  Bass Boost / Phase switch	● / ○
  High level input / Auto-on	● / ●
  Remote	●
  BIAS Setting	○
  Linkmode	○
  Dimensions (W x L x H)	168 x 49 x 295 mm / 6.61″ x 1.93″ x 11.61″
