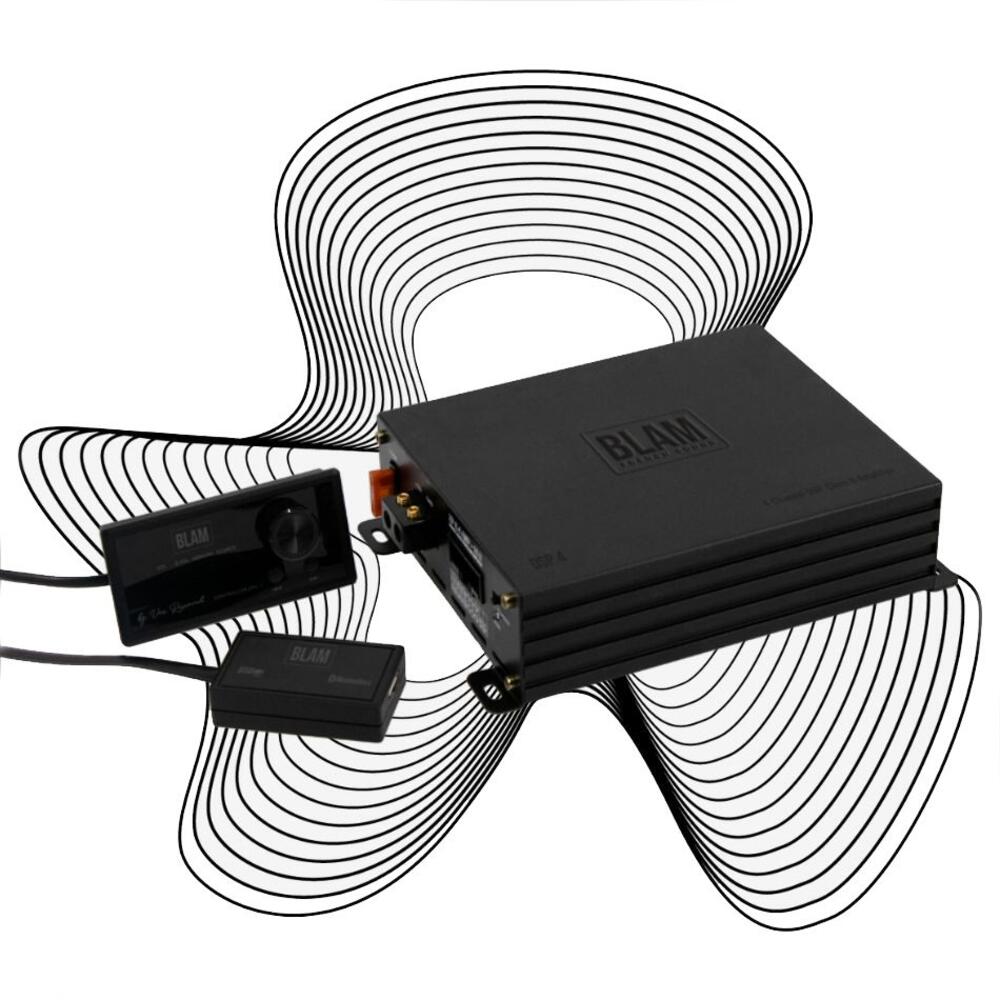

DSP4

Technical specification

– Power (4 Ω): 4 x 75 Watts RMS
– Power (2 Ω): 4 x 120 Watts RMS
– 4 high-level inputs
– 2 low-level RCA inputs
– 6 low-level RCA outputs
– Frequency response: 22 Hz – 20 kHz
– Distortion: 0.1
– Signal-to-noise ratio 95 dB
– Standby current <0.4 mA
– Maximum current consumption 30 A
– Dimensions (L x W x H): 160 × 146 × 46 mm – 6.3” × 5.7”× 1.8”

DSP features

– Control of DSP settings via Bluetooth-connected smartphone app
– Time alignment adjustable from 0 to 20 ms for each loudspeaker and phase adjustment
– 15-band parametric graphic equalizer for 6 output channels
– Fully customizable filter from 6 to 48 dB/octave Linkwitz, Riley, Butterworth & Bessel on all outputs
– 8 favorite settings stored in amplifier memory
6 RCA outputs for connecting additional amplifiers (configurable to drive subwoofers)
Input noise attenuation treatment

Accessories included:
User manual
Audio streaming with the included Bluetooth receiver
Optional remote control
Optional Plug & Play cable for installation in all vehicles without cutting the original wiring harness
