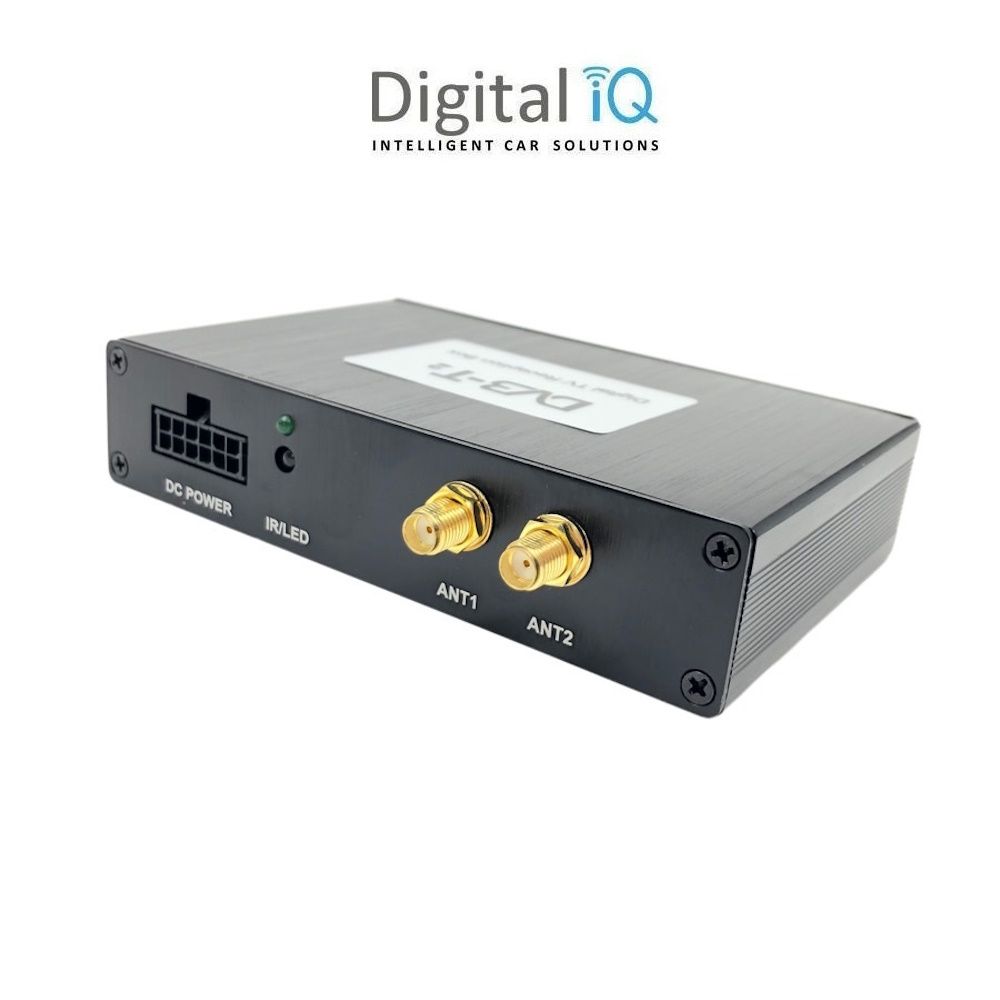

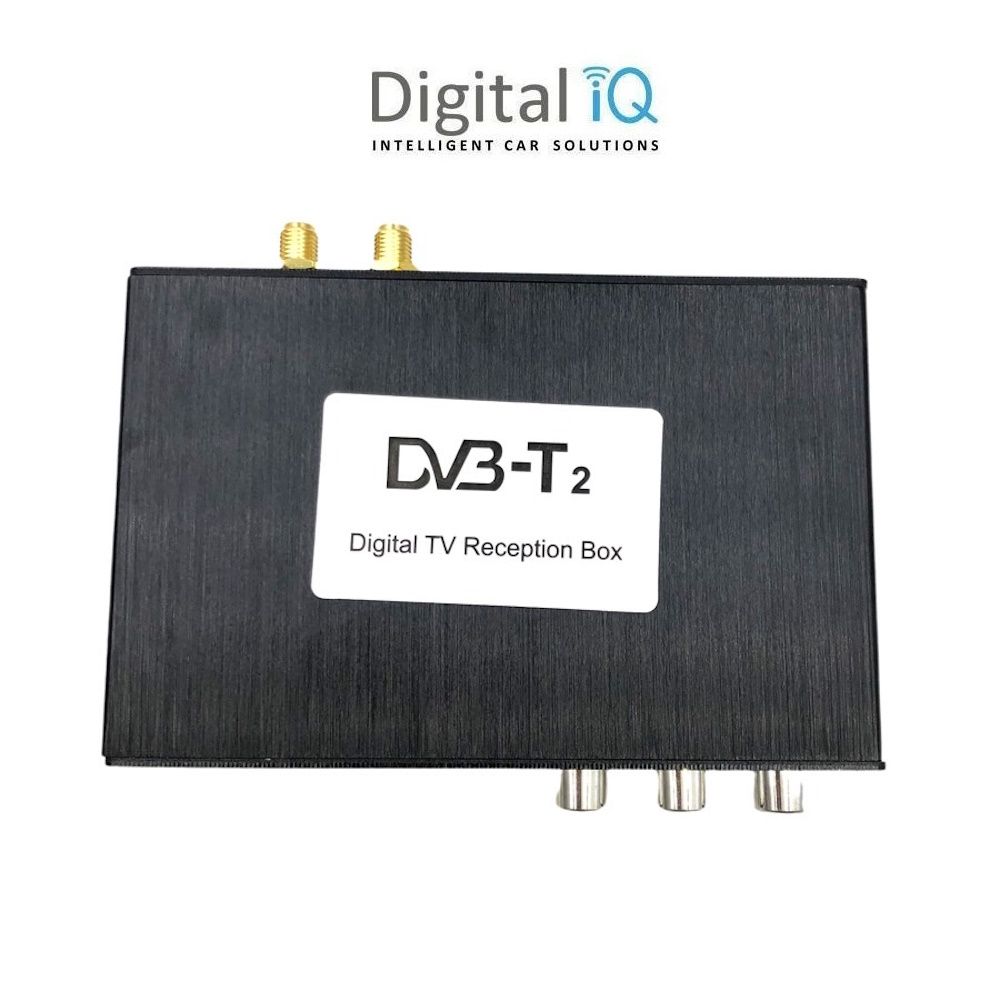

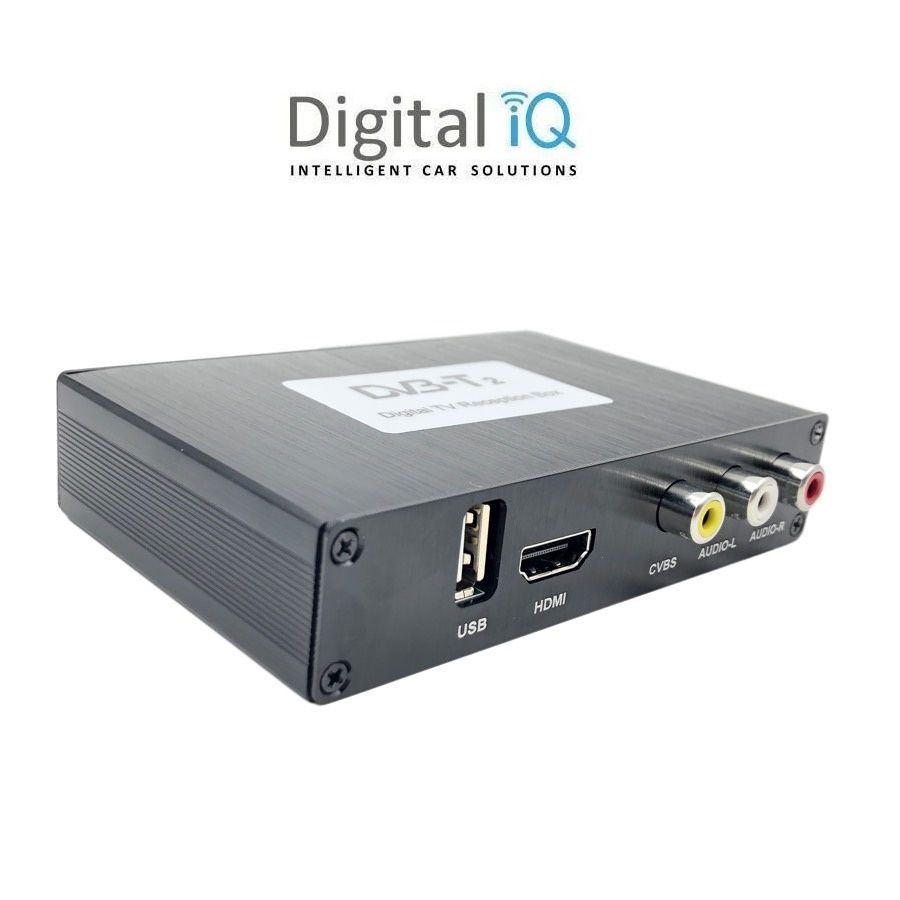

DIGITAL IQ DTV_2200HD

• Input impedance :  75Ω
• Signal level :  -80 to -10 dBm
• Video aspect ratio : 4:3 / 16:9
• Video output : 1 CVBS ( 3 CVBS optional), 1 HD (1080P)
• Video Decoder : MPEG-1/2/4，H.264，VC-1
• Audio output : L/R, digital HD – 1Vp-p, 47Kω adjustable with E volume
• Audio Decoder : MPEG-1/2，MP3，AC-3，AAC-LC 5.1，WMA， HE-AAC V1/V2 2.0，RA8-LBR
• IR extension jack : for IR extension box
• Operating temperature : -10 to 50°C
• Storage temperature : -10 to 65°C
• Power Supplier : 12 to 24 V DC ± 10%
• Dimension : 138.2*86.2*21.8mm

Features :

• Compliant with DVB-T MPEG2/SD/HD and H.264 SD standards
• 2 Antennas with 22db power
• With DiBcom 9090M high-performance NIM chips with diversity structure
• Speed move 230kph (SD) minimum ( at 8k, 64 QAM, CR2/3.GI1/847 MHz)
• Provide antenna power supplier function for pair use with mobile active antenna
• Stores over 500 TV and radio programs, favorite channels list editing
• Support PAL/NTSC video output 3 sets of video output for tourist bus and van to install with three monitors
• Fast scan for high-speed driving and cross different area
• Wide DC power input from 12 to 24V DC
