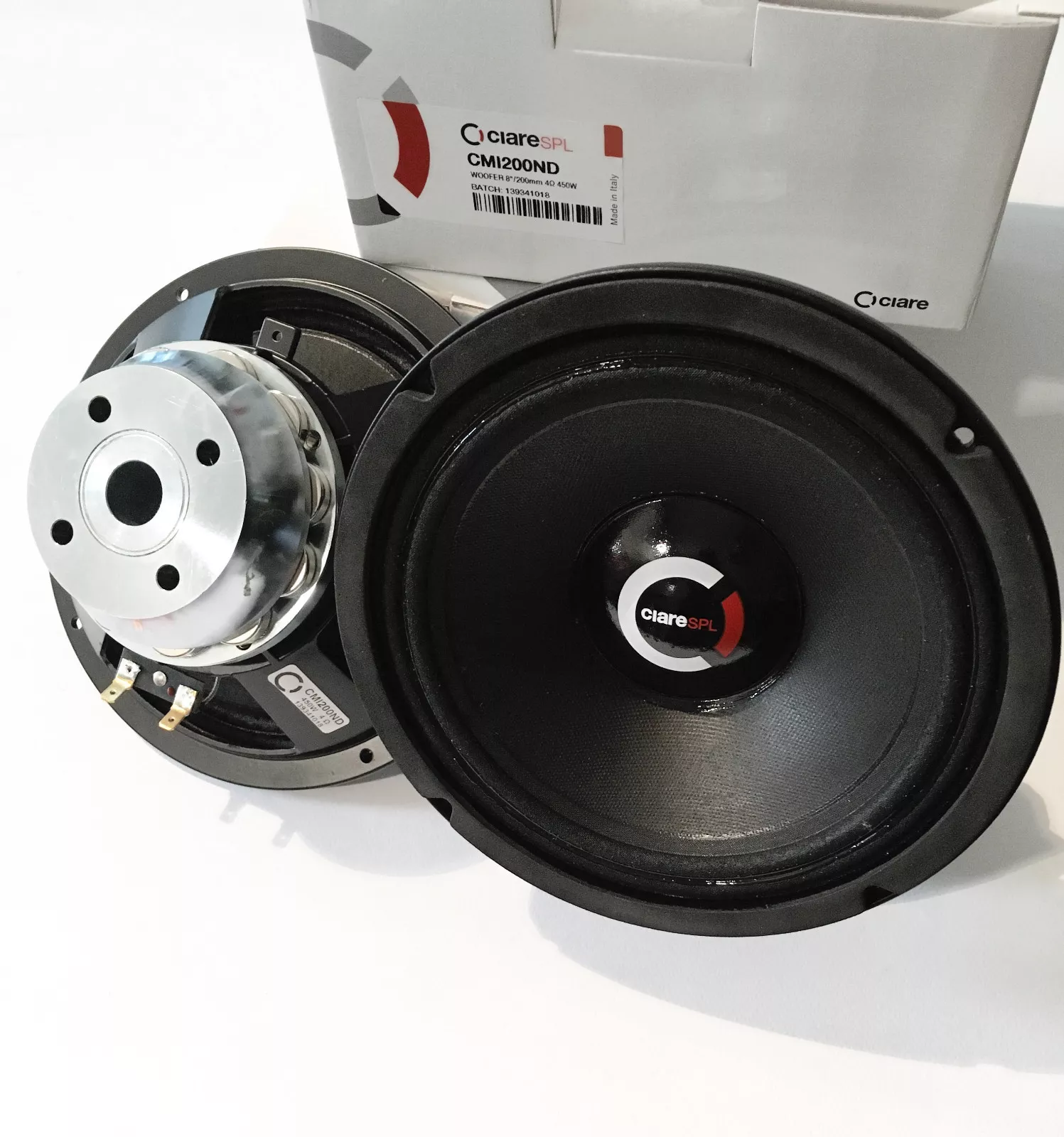

Ciare CMI200ND SPL (8") Midrange

Specifications

Nominal Diameter  200 mm (8 in)

Nominal Power Handling  220 W

Sensitivity  98.5 dB

Voice Coil Diameter  50 mm (2 in)

Former Material  Glass fiber

Magnetic Gap Depth  8 mm (0.31 in)

Nominal Impedance  4 Ω

Continuous Power Handling  450 W

Frequency Range  90 Hz – 5000 Hz

Winding Material  Copper

Winding Depth  12.5 mm (0.49 in)

Parameters

Fs  80 Hz

Qes  0.39

Qts  0.37

Sd  214 cm² (33.17 sq²)

Xmax  4.5 mm (0.18 in)

Bl  8.8 Tm

d  165 mm (6.5 in)

Re  3 Ω

Qms  7.5

Vas  12.5 dm³ (0.44 ft³)

η0  1.6 %

Mms 0.5 g

Le  0.38 mH

EBP  205 Hz
