All about the ATB20A 20 cm / 8 " active subwoofer with passive cone
AXTON ATB20A – 20 cm / 8" active subwoofer for car and motorhomes, compact cabinet bass box with amplifier, active bass box with high level inputs, 140 watts

Compact, powerful and with a modern design – the AXTON ATB20A active subwoofer is designed for music lovers who do not want to do without loading space or bass when on the road. With dimensions of 315 x 275 x 330 mm, the bass box can be flexibly positioned in larger vehicles such as motor homes or trucks, but also even in the trunk of small vehicles. Quick to install and remove, AXTON's bass box is also suitable for leased vehicles on which as little as possible should be changed.

The surface coating of the new bass box is a high-strength hard-wearing textured lacquer, as also used in professional sound reinforcement technology, which protects against accidental damage, as can quickly happen in the trunk, and facilitates maintenance – so that the ATB20A always looks good.

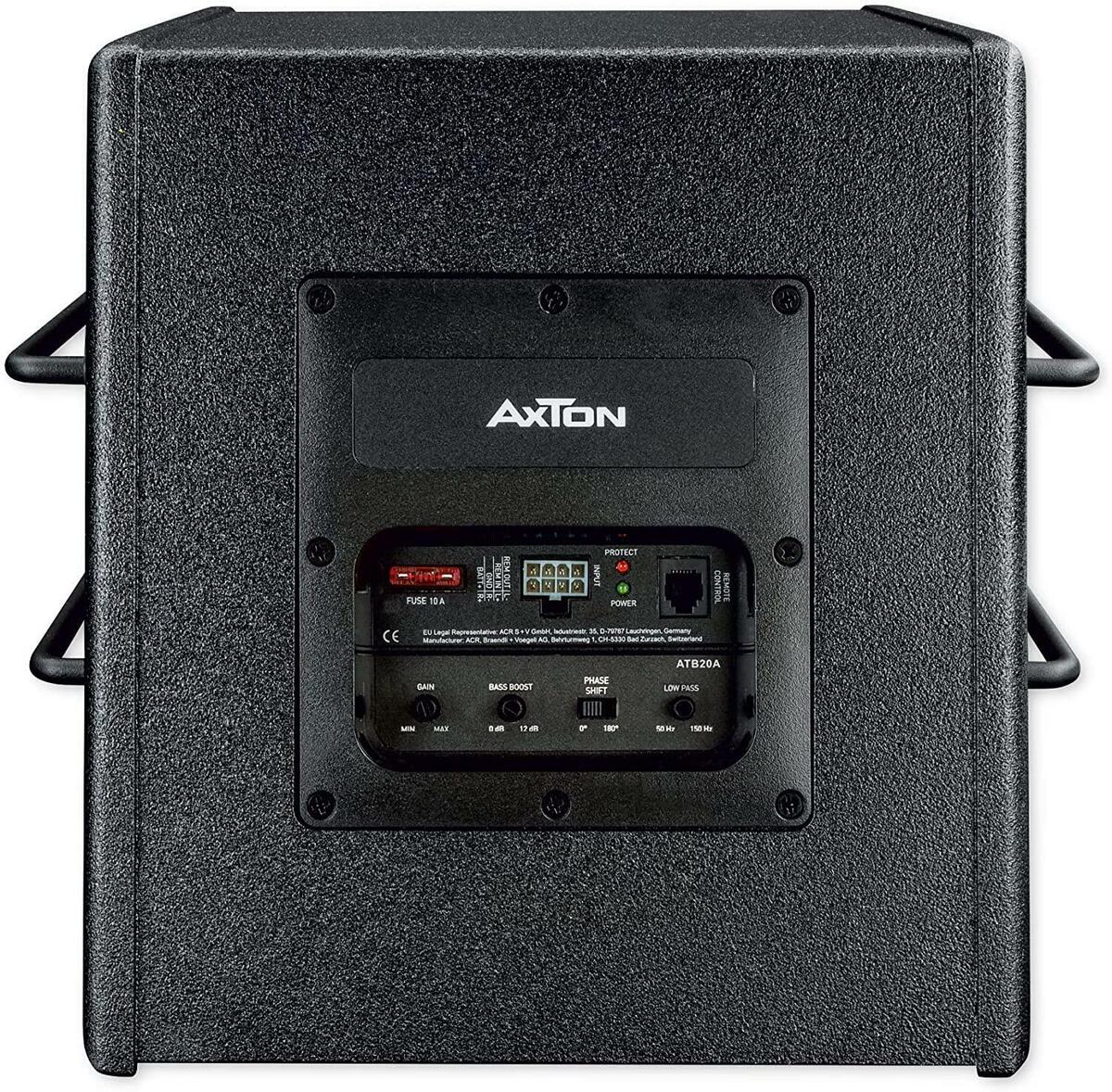

The newly developed woofer with passive diaphragm has a one-piece construction with special diaphragm geometry for precise bass reproduction – even at high excursions. The In conjunction with the lightweight diaphragm material and the powerful drive results in a very high efficiency. The integrated amplifier delivers 100 watts RMS and provides crisp, powerful bass. It sits protected on the back of the housing, yet settings can be conveniently adjusted at any time.

The compact active bass speaker has all the necessary adjustment options on board, including the integrated electronic 12 dB/oct. low-pass filter, adjustable between 50 – 150 Hz, as well as a variable phase shift (0 – 180°) and input gain, and a bass boost (0 – 12 dB).

AXTON's housing subwoofer has RCA inputs and high-level inputs with auto turn-on function: This makes the universal ATB20A well equipped for easy direct connection to factory radios, multimedia and navigation systems factory radios without remote output. A bass level remote control is included in the Leiferumfang.

Highlights

20 cm / 8" active subwoofer with passive cone
Woofer with concave diaphragm geometry for high stiffness
Compact enclosure dimensions, enclosure with beveled rear panel
Resistant surface thanks to high-strength textured lacquer
Class-D amplifier module with 100 W RMS
Variable low-pass filter: 50 – 150Hz/12 dB/oct.
Bass boost: 0 dB – 12 dB
Phase shift: 0 / 180 degrees
Variable gain
High level inputs with auto turn-on
Bass level remote control included

Specifications

Frequency response 45 – 150 Hz

Amplifier power: 100 W RMS

Dimensions (W x H x D) 315 x 275 x 330 mm
