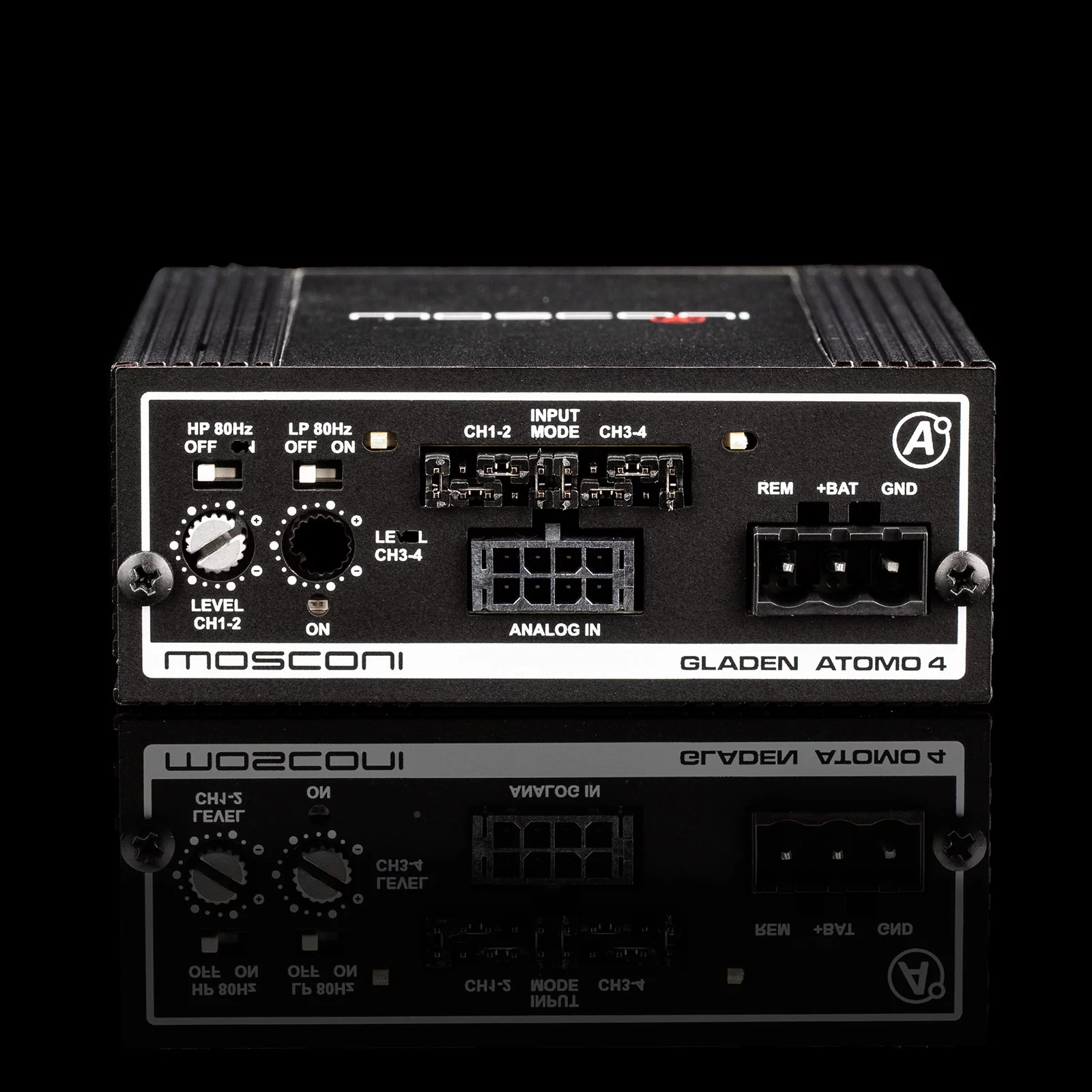

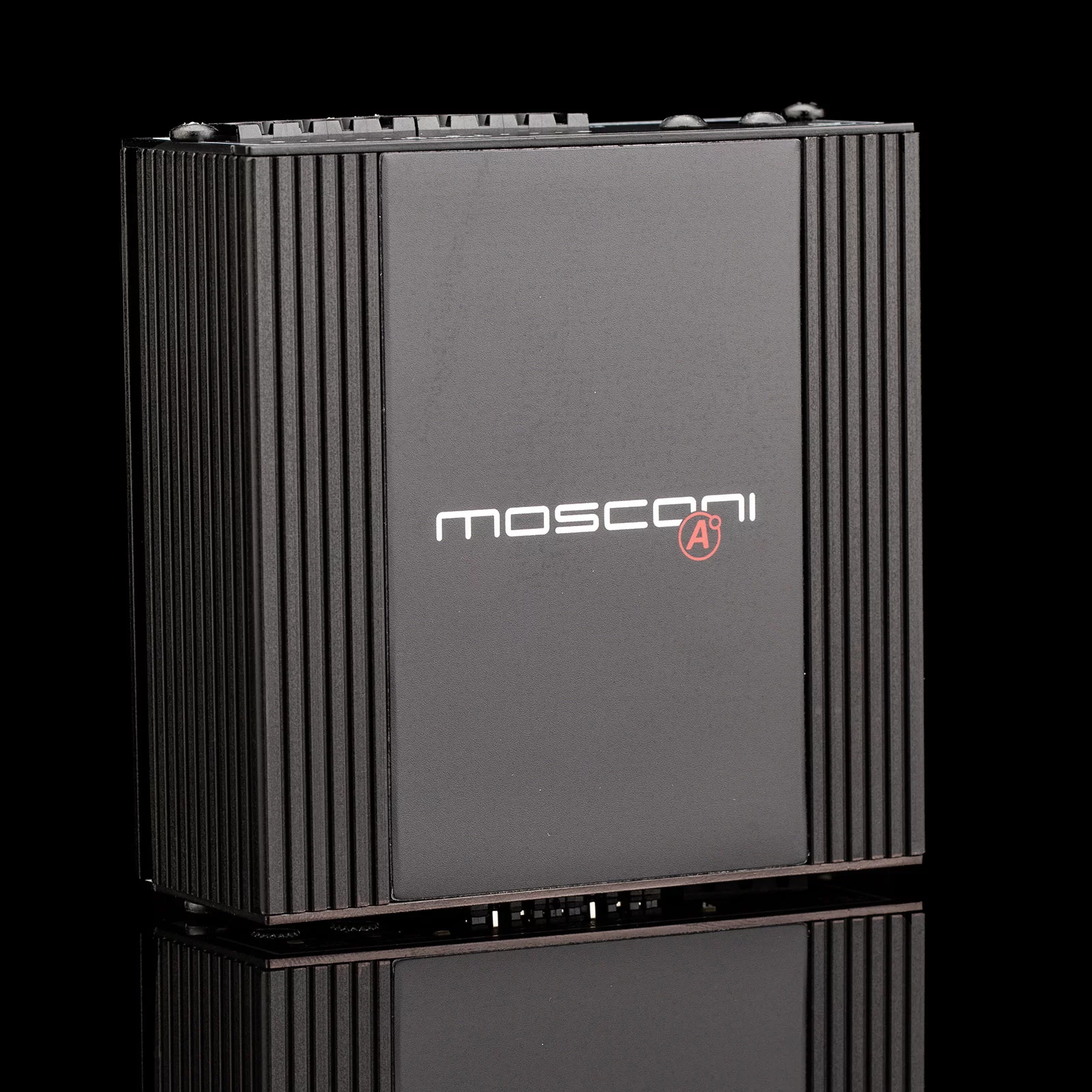

4ch MOSCONI ATOMO 4

ATOMO 4 – Maximum performance in the smallest of spaces

Extremely compact, powerful 4-channel amplifier
Wide input voltage range 0.4 Vrms – 5 Vrms (low level) / 1.6 Vrms – 20 Vrms (high level)
Inputs flexibly configurable (floating / fixed ground, switchable load resistors)
Remote detection (BTL)
High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit)

TECHNICAL DATA MOSCONI ATOMO 4

Power supply voltage: 10 – 16 V

DC-DC converter typology:Unregulated – Push Pull

External fuse:1 x 20 A

Power-on / Power-off voltage threshold:9 V / 6 V

Mute delay time:3 secs

Autosense power-on (HL only): BTL source only

Overall efficiency: > 75 %

Standby current: < 0.1 mA (typical)

Idle current: 0.58 A @ 14.4 V

Thermal cutoff threshold: 93 °C (± 5 %)

OUTPUT POWER RMS @ 14.4 V (1 % THD)

Output power RMS @ 4 Ω: 60 W x 4 or 150 W x 2 [BTL]

Output power RMS @ 2 Ω: 75 W x 4

T.H.D. @ 4 Ohm: < 0.2 % (1 kHZ / 90 Power rating ref)

T.H.D. @ 2 Ohm: < 0.6 % (1 kHZ / 90 Power rating ref)

Minimum load: 2 Ohm with musical signal
