100 RFS

Technical details

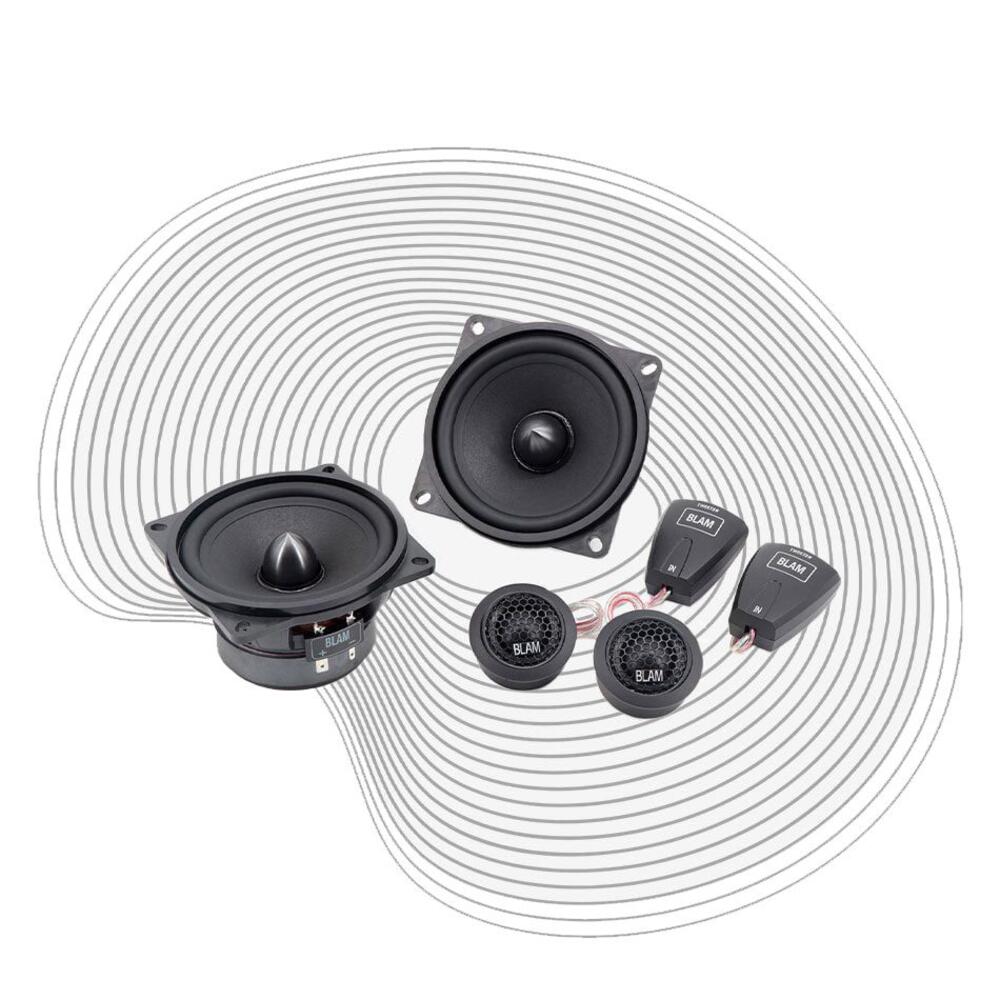

This kit includes 2 x 100 mm (4″) woofers, 2 x 20 mm soft dome tweeters and 2 x 6 dB/octave high-pass crossovers.

Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω

Composition

Woofer:
Original BLAM glass fiber reinforced composite basket
High quality treated cellulose pulp membrane
Butyl peripheral suspension
Long life spider “Conex”
25 mm voice coil on Kapton support
70 mm x 15 mm ferrite motor
Thick magnetic circuit (4 mm)

High quality 20 mm soft dome tweeter

6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB

Accessoires fournis
Vis de fixation
Accessoires de montage pour les tweeters
Notice d’utilisation
