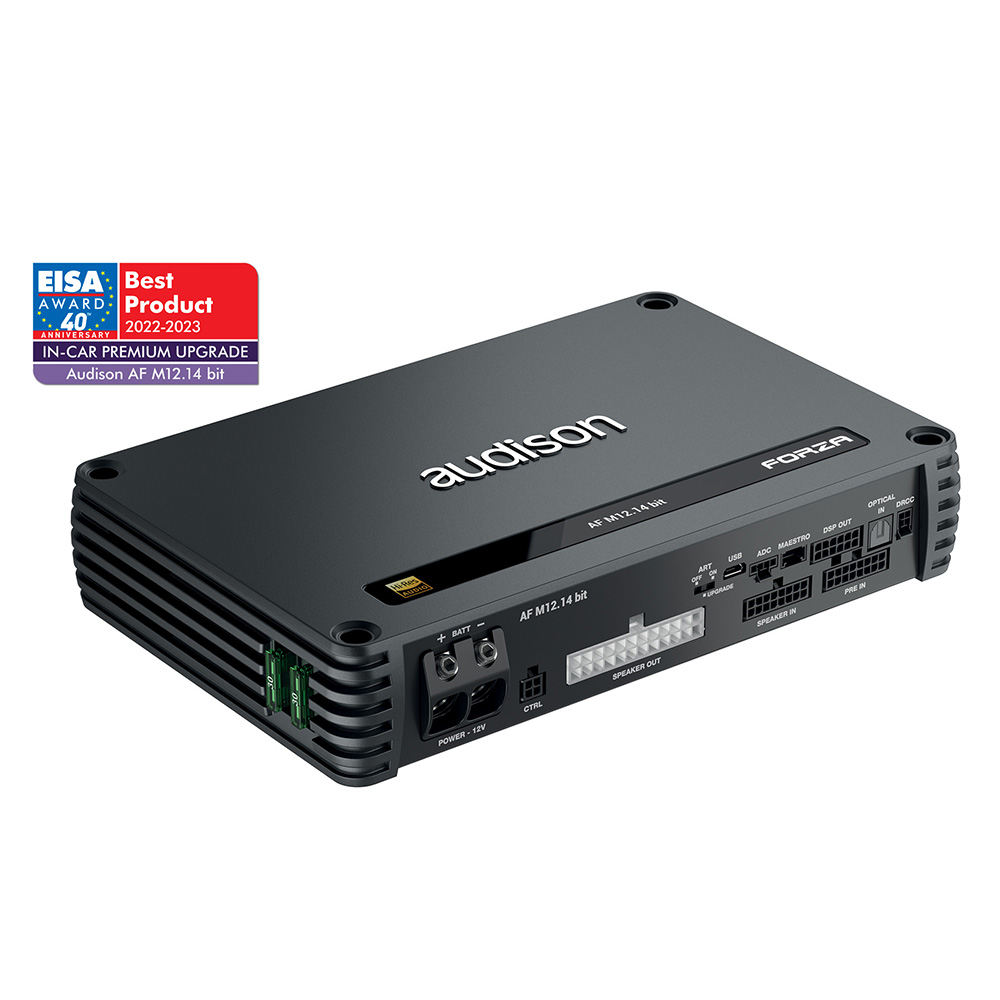

Ενισχυτής με επεξεργαστή DSP – Audison Forza AF M12.14 bit

Nominal power supply voltage / fuse:

11 ÷ 15 VDC / 2 x 30A

Pulse operating voltage:

6.5 ÷ 17.5 VDC

Idling current:

1.68 A

Standby current draw:

1.7 mA

Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power):

45 A

Remote IN:

4 ÷15 VDC (1 mA)

Remote OUT:

6.5 ÷15 VDC (150 mA)

ART – Automatic Remote Turn on/off from Speaker-In

1.5 VDC

Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels:

80%

Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power:

0.03%

Damping factor @ 1 kHz , 4Ω, 2 VRMS:

80

Bandwidth @ -3 dB:

10 Hz ÷ 42 kHz

S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input:

98 dBA

S/N ratio (A weighted @ Rated Power) Optical Input:

105 dBA

Minimum load impedance:

12Ch: 2Ω

6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω

• 12 Ch @ 4Ω:

60 W x 12

• 12 Ch @ 2Ω:

90 W x 12

• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω:

180 W x 6

Output power @ 4Ω, 1% THD+N, 14.4 V:

45 W

SN ratio (ref. 1 W output):

75.5 dB

Pre-In (8 Ch):

0.6 ÷ 6 VRMS (15 kΩ Imp.)

Speaker-In (8 Ch + additional 4 Ch with optional F4IN card):

2.2 ÷ 22 VRMS (5 Ω Imp.)

Digital IN:

1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DSP Preout (2 Ch):

5V RMS

Audio DSP and converters:

Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance

Filter type:

Full / High-Pass / Low-Pass / Band-Pass

Filter mode and slope:

Linkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.

Crossover frequency:

20 Hz ÷ 20 kHz

Phase control:

0° / 180°, All-Pass filters

Analog Input Equalizer (20 Hz ÷ 20 kHz):

12 Biquad + Delay

Output Equalizer:

Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

Input and Output Real Time Audio Monitor:

RTA

Time Alignment Distance:

0 ÷ 510 cm / 0 ÷ 200.8 inches

Time Alignment Delay:

0 ÷ 15 ms

Audison DRCC port:

Input for DRCC remote control (Optional)

Audison ADC port:

Manage other Audison devices that support this standard

Control 1 wire:

Customizable functions (+ 12 V activated)

Control 2 wire:

Customizable functions (+ 12 V activated)

PC connections:

Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/ PC requirements:

Windows 10, Windows 11 (min. res. 1024 x 768

Ambient operating temperature range:

0 °C to 55 °C (32 °F to 131 °F)

Max size W x H x D (mm/inch):

240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight (kg/lb):

2,04 / 4.49
