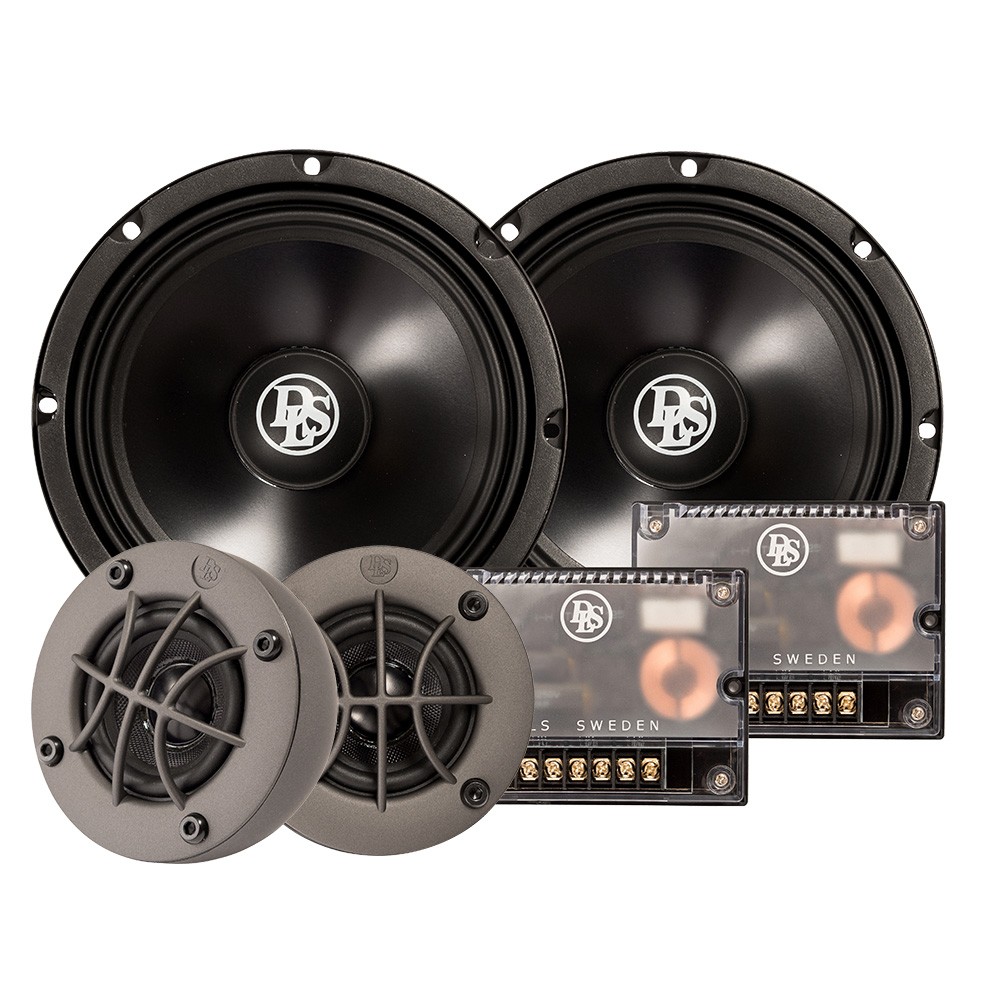

Διαιρούμενα ηχεία αυτοκινήτου Slim 6.5″ (165mm) DLS Reference RZ6.2Q

Reference series RZ6.2Q implement DLS original design, anti-vibration PENTA basket with five reinforced pillars and DLS imprinted logos.

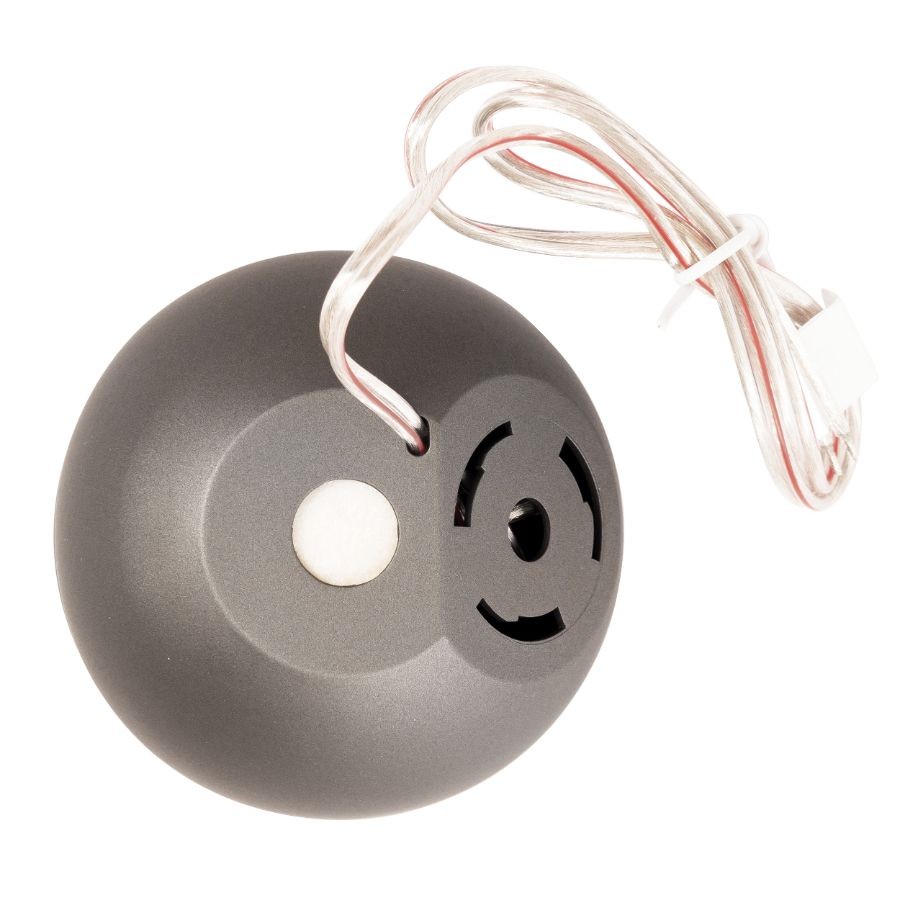

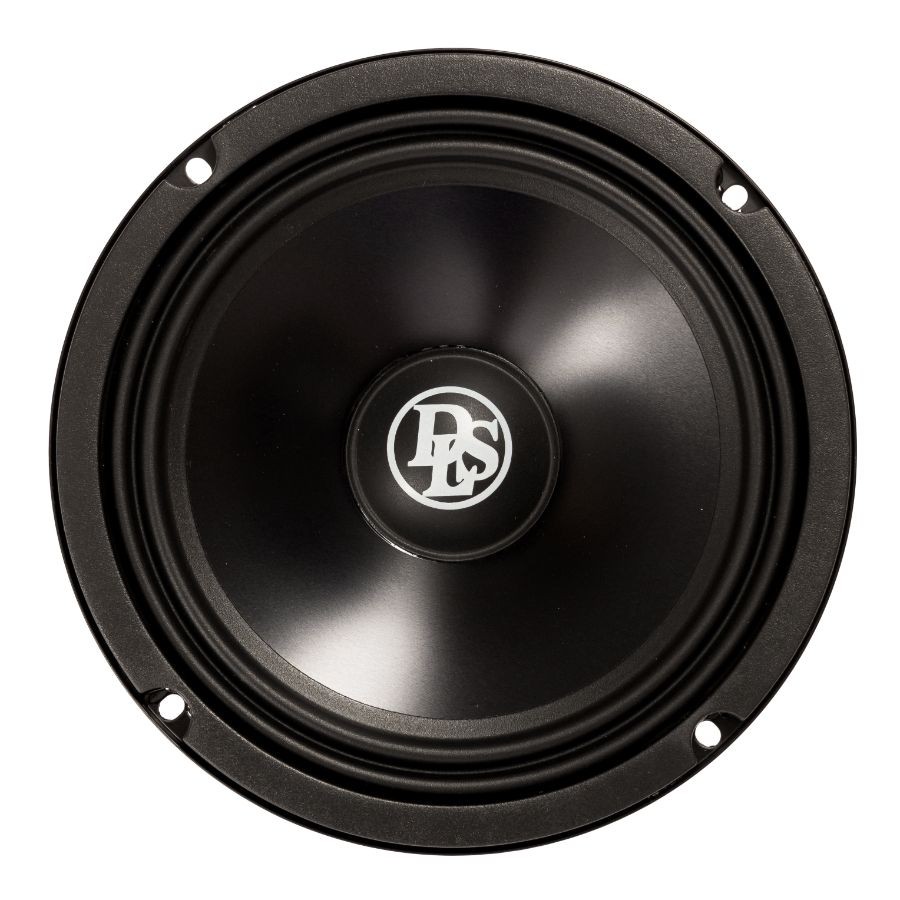

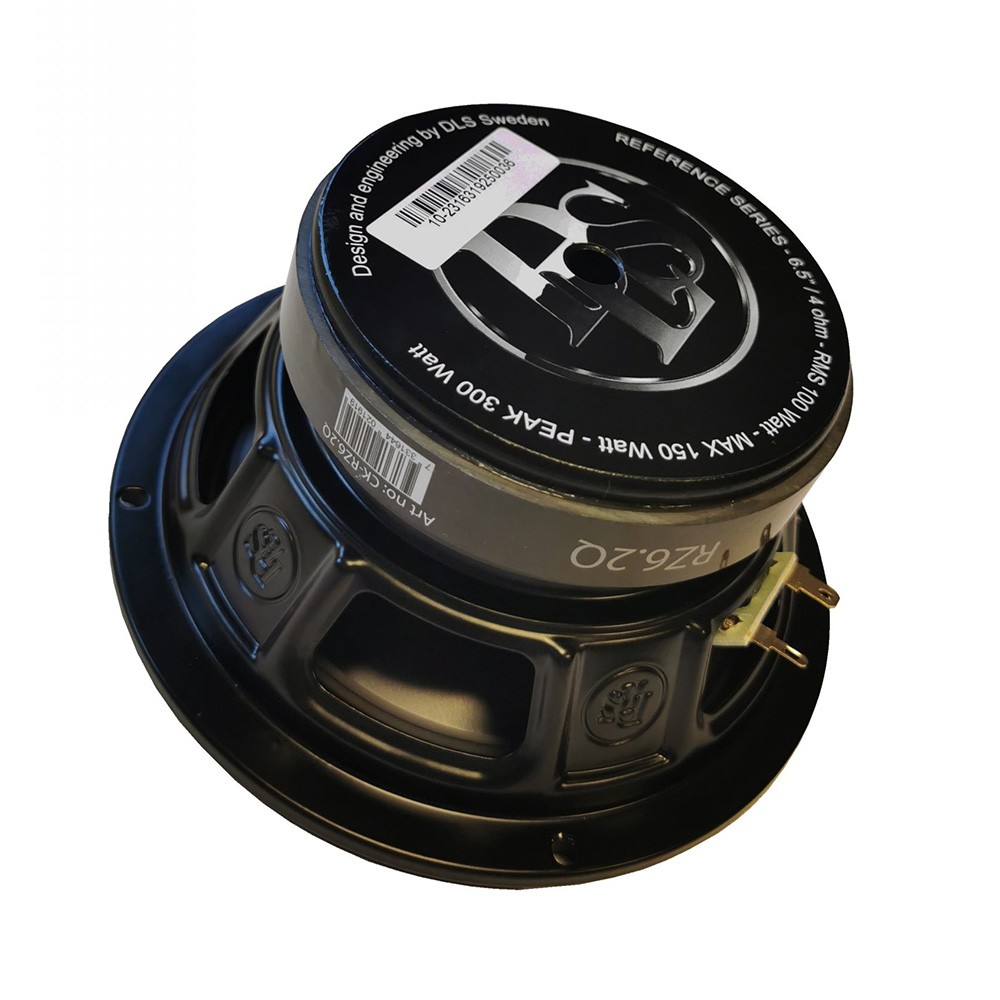

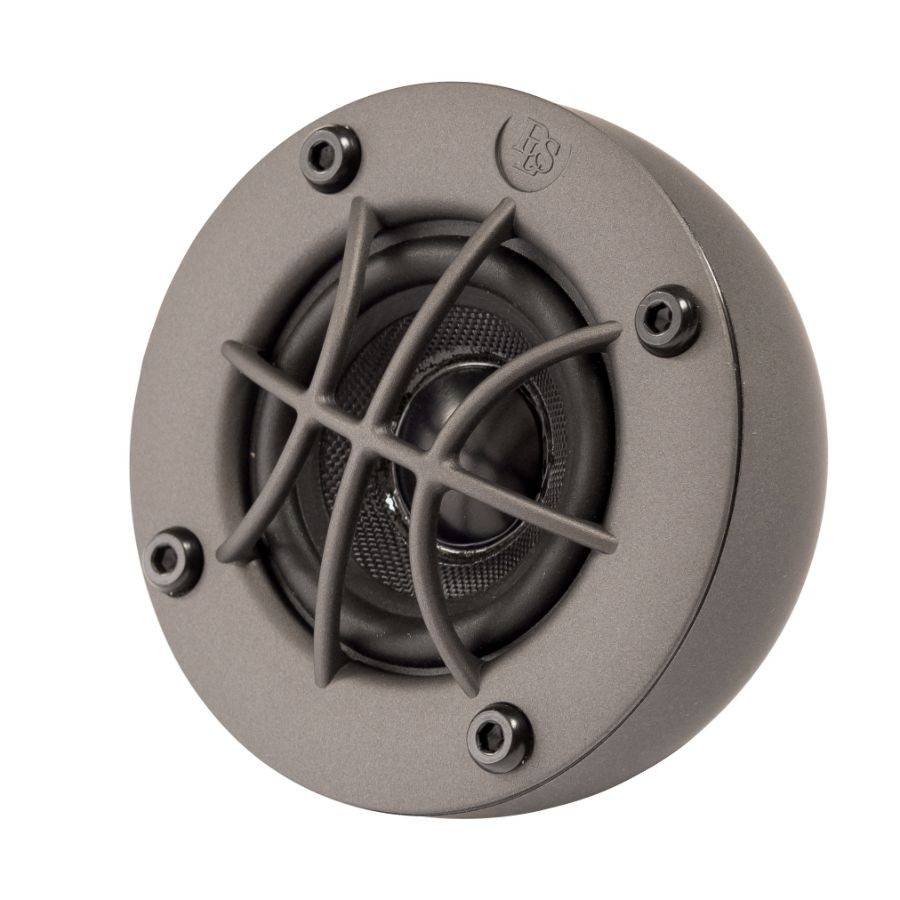

The large magnet, aluminum cone, woofer nicely blends with a 50mm wide band tweeter through a specially tuned high-grade crossover. It enables special installations with an improved soundstage combined with bass power, clarity and warmth.

Crossover Filter box with 6/12 dB slope (LP/HP)

Crossover point (Hz) 1500 Hz

Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)

Fs 64,2 Hz  Re 3,4 Ohm  Qms 7,29

Vas 6,27 liter  Vas 0,22 Cuft  Qes 0,88

Qts 0,79  Sd 143 cm²  BL 6,59
